The SLogic16U3 is a next‑generation USB3 logic analyzer. In a compact 40×40×10 mm housing it delivers high sample rates over a 5 Gbps USB3 interface: 800M@4CH, 400M@8CH, 200M@16CH. It supports 0–10V signal input, configurable voltage trigger thresholds from 0–6V, and software triggering — starting at only $69.

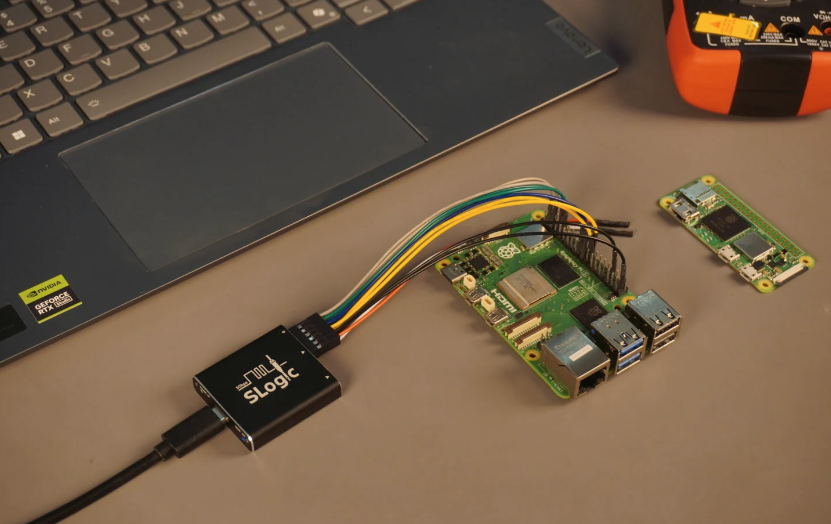

SLogic16U3 product

Features & Specifications

Attribute SLogic Combo8 SLogic16U3 SLogic32U3
Model SLogic Combo8 SLogic16U3 SLogic32U3
USB Type USB2.0 USB3.0 USB3.2 Gen2
Max Sample Rate 80M 800M 1500M
Max Channels 8 16 32
Max Bandwidth 0.3Gbps 3.2Gbps 6.4Gbps
Typical Comb. (stream, unlimited) 80M@4CH, 40M@8CH 800M@4CH, 400M@8CH, 200M@16CH 1500M@4CH, 800M@8CH, 400M@16CH, 200M@32CH
Sigrok Compatible Y Y Y
Adjustable Threshold N Y Y
Case Plastic Aluminum Aluminum
Extra Feature DAP-Link, CK-Link, 4-UART Extend ADC -> Oscilloscope
Size 20x40x10mm 40x40x10mm 50x50x10mm
Price $15 $69 $149

Product Images

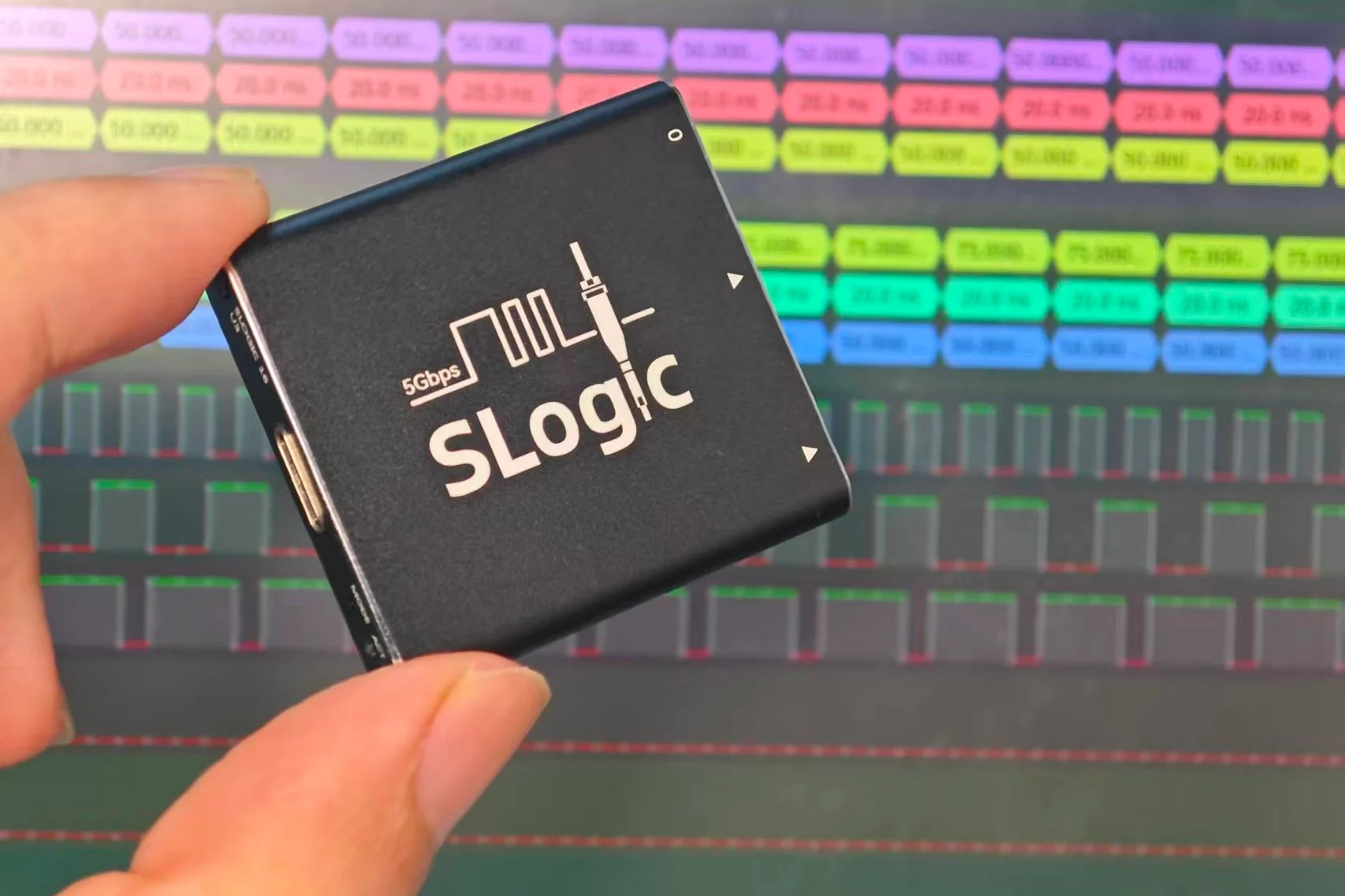

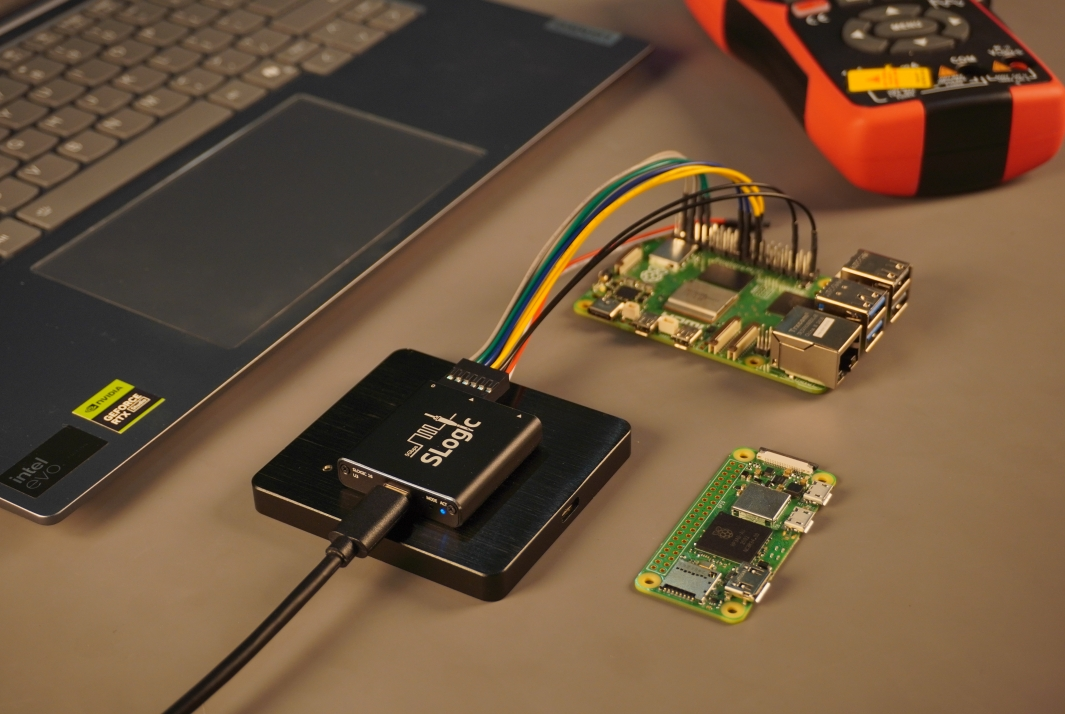

  • size: 40x40x10mm

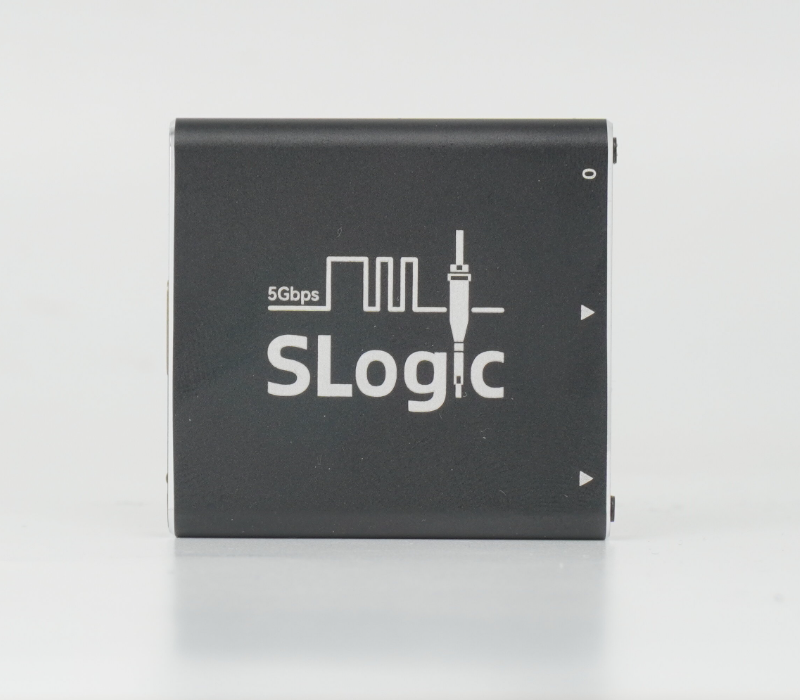

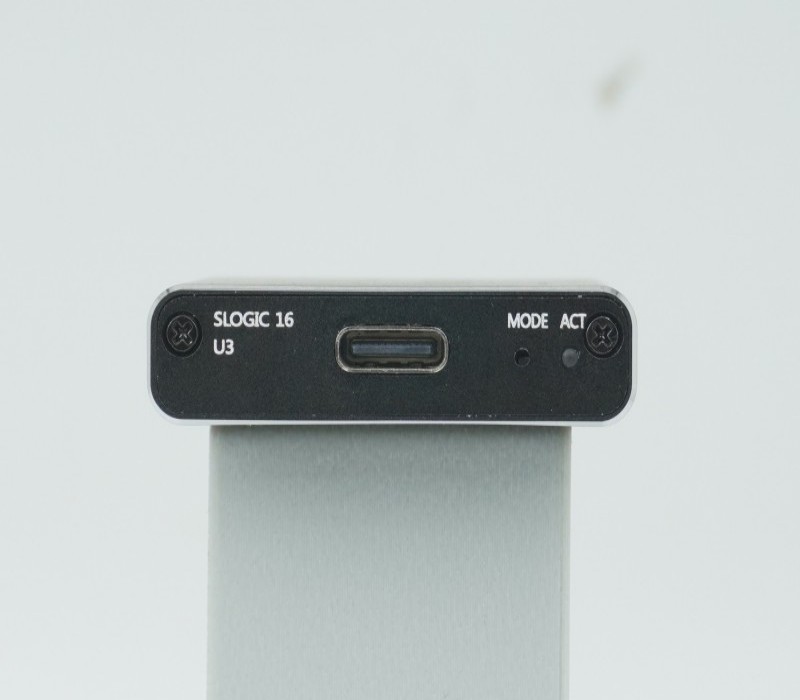

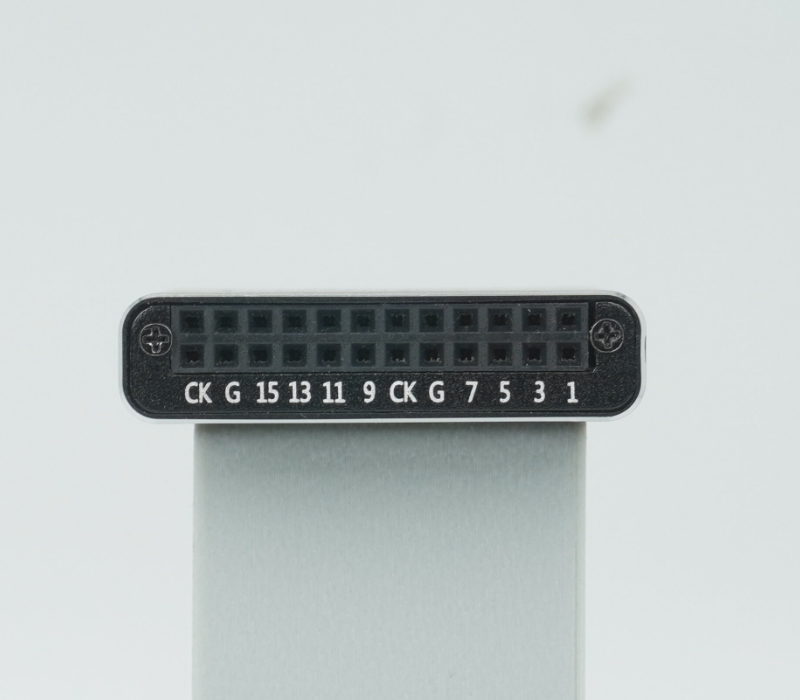

  • view: top/front/rear

Software installation

Supported OS

  • Windows 10/11 (x86_64)
    • The native .exe program is limited by Windows USB driver issues and currently only reaches just over 390 MB/s, so it cannot achieve the target 400 MB/s bandwidth and must be throttled to 400M@4CH, 200M@8CH, 100M@16CH.

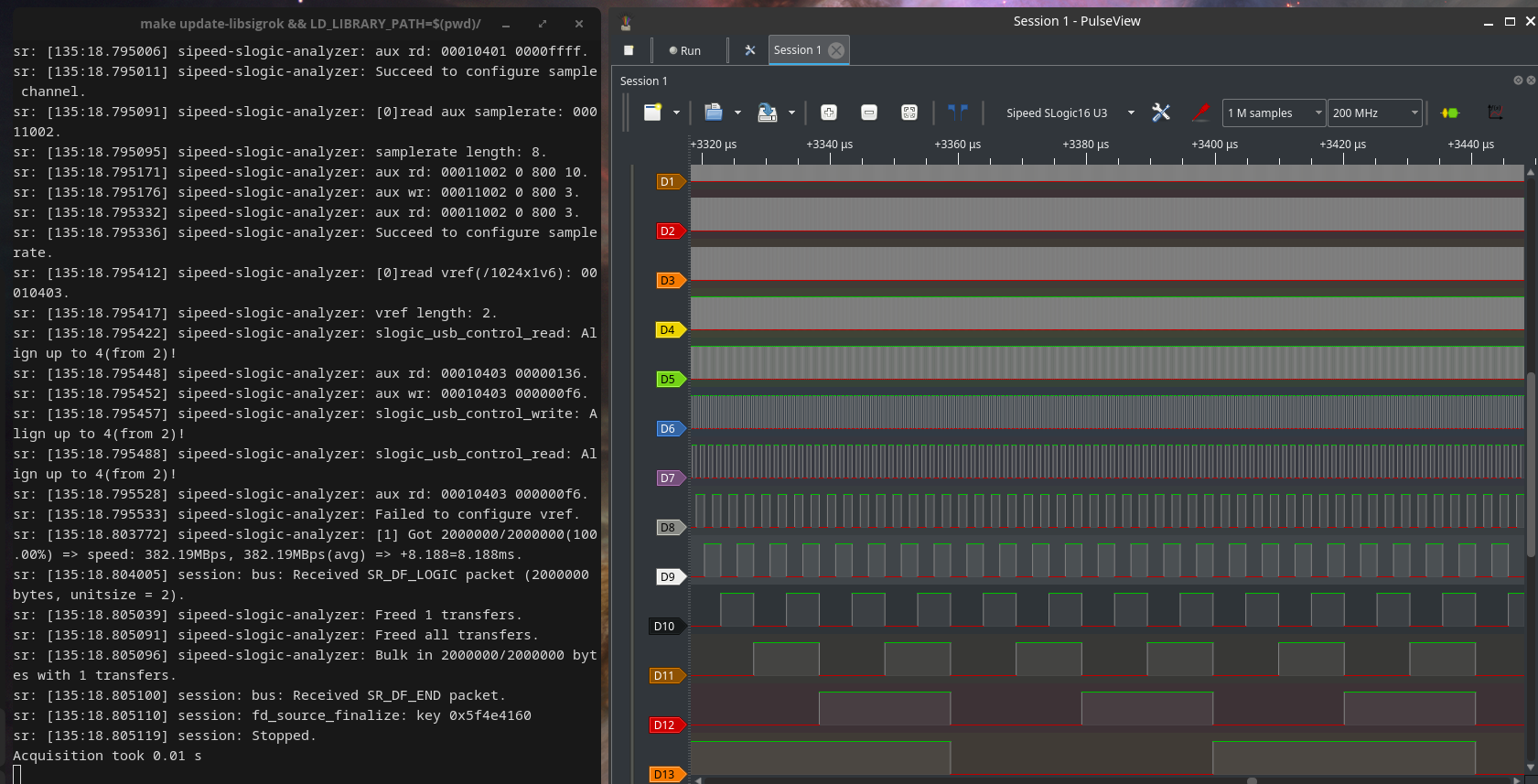

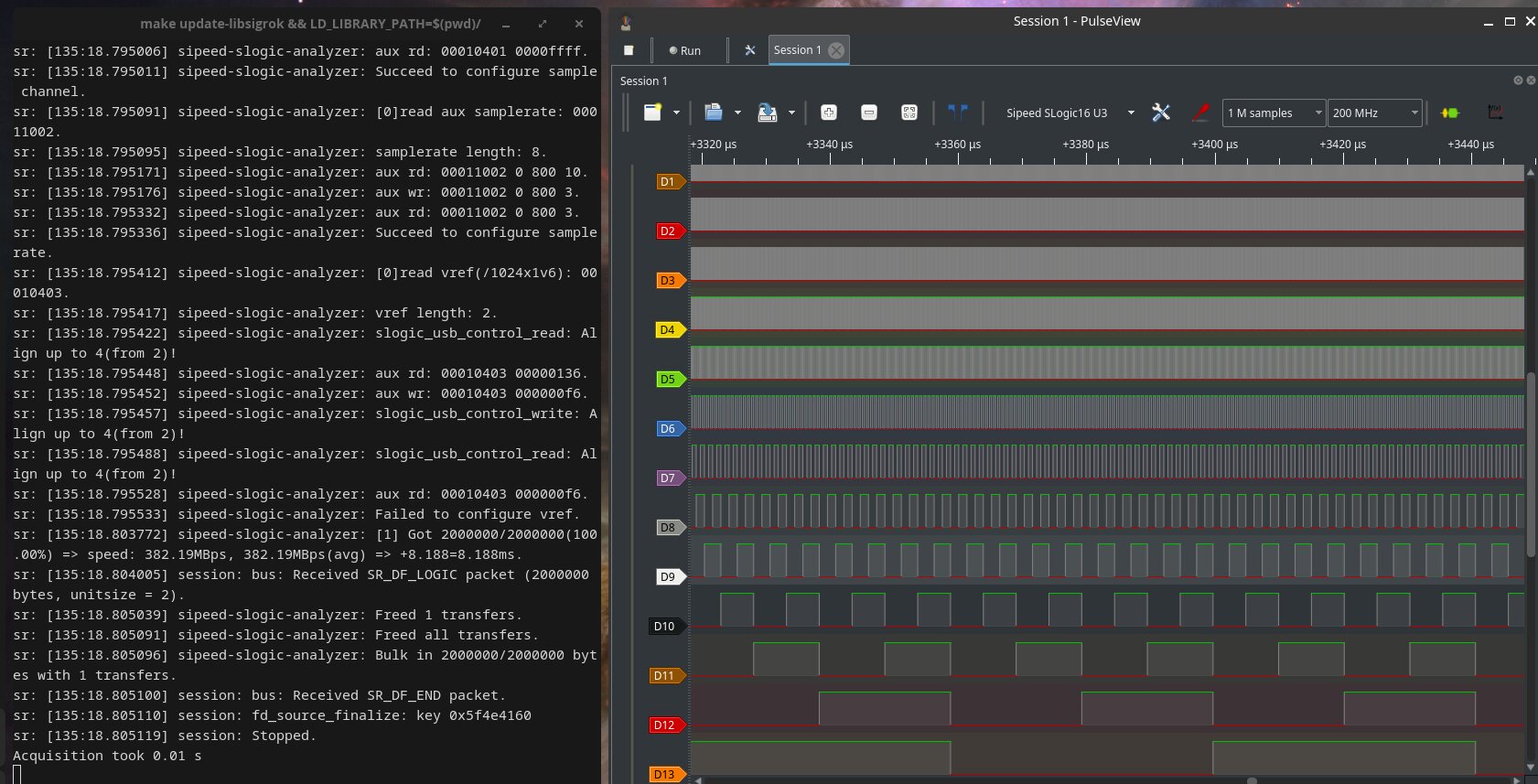

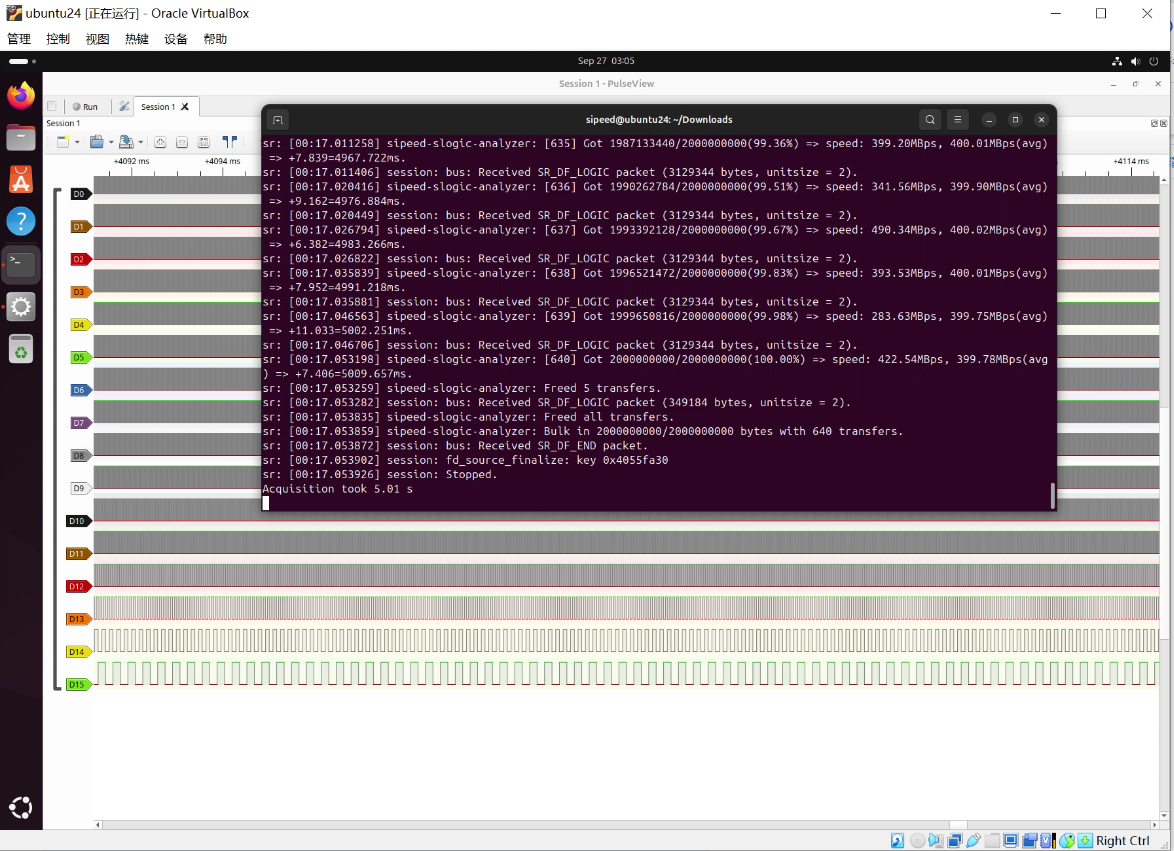

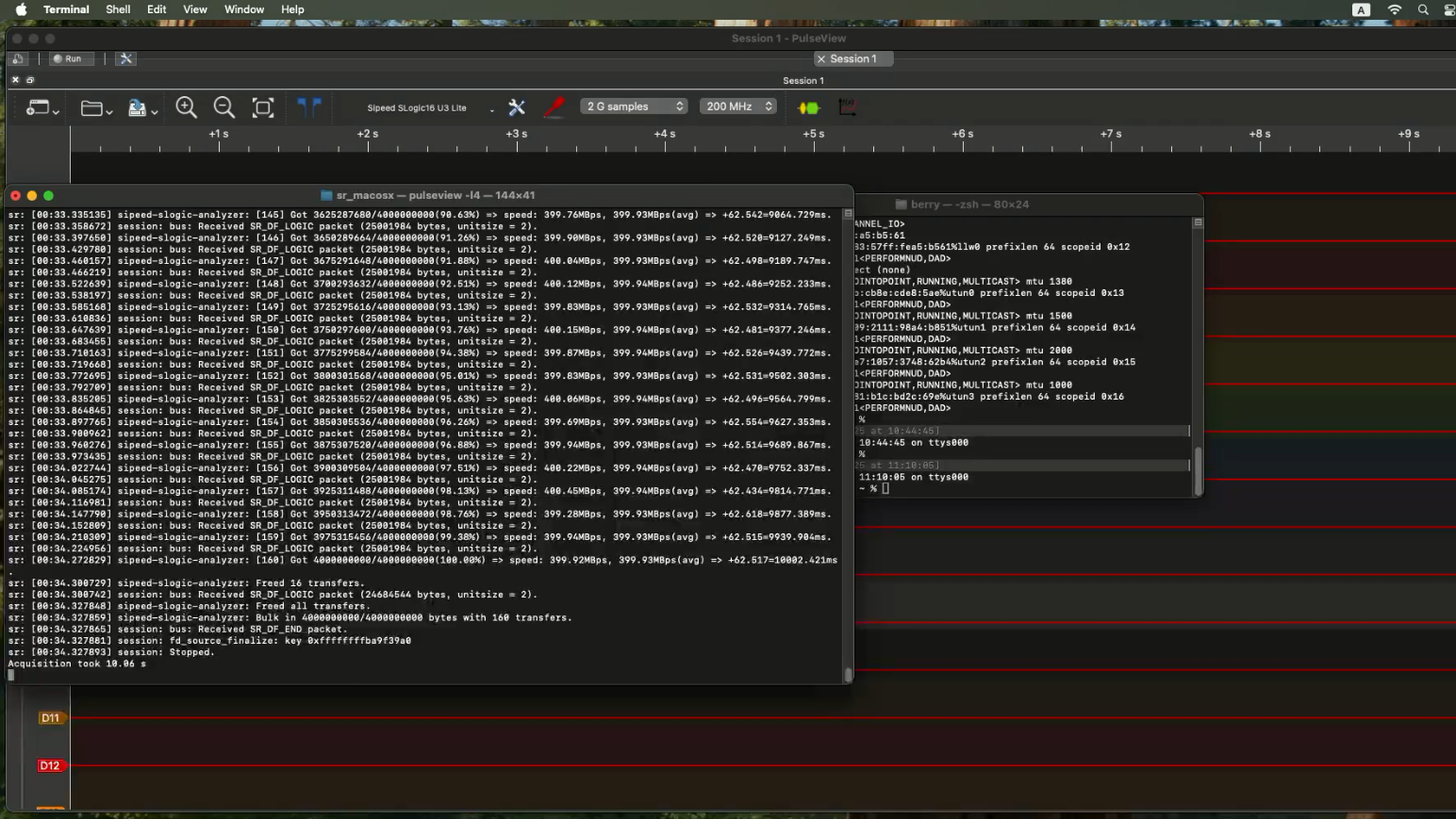

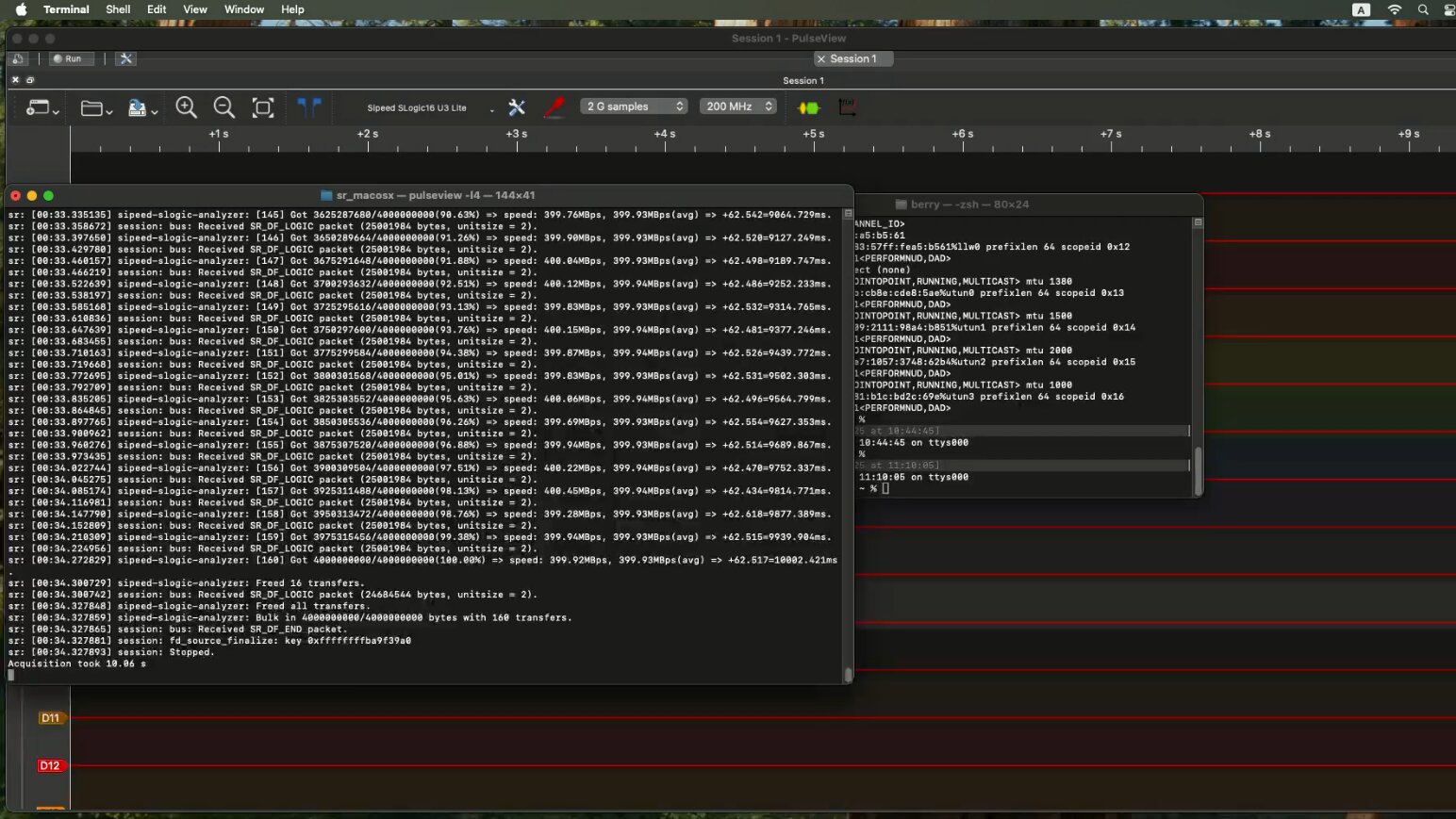

    • If you’re using a Windows PC and want to achieve the full 400 MB/s bandwidth, you can install a Linux virtual machine to perform full‑speed captures.
    另 Linux 虚拟机可满速运行
  • Linux (x86_64)
  • macOS (Apple Silicon M4)

Downloads

Windows

  • Extract the portable archive and double-click pulseview.exe to launch.
  • To enable debug mode, run in terminal:
pulseview-debug.exe -l5

Linux

chmod +x Pulseview.appimage
./Pulseview.appimage
# ./Pulseview.appimage -l5   # enable debug mode

macOS

  • Download and open Pulseview.dmg to run directly.
