NanoKVM Go Realtime Voice Chat Quick Start

2026-08-05
Update history
Date Version Author Update content
2026-08-05 v1.0 Liang Ziyue
  • Added the English quick-start guide for Voice Bridge
  • Added the Virtual Audio prerequisite

Realtime Voice Chat Quick Start

Voice Bridge Overview

Voice Bridge is a realtime voice bridge App that runs on NanoKVM Go. It forwards two-way audio between the controlled host's audio devices and a cloud realtime voice model, so a caller can talk to an AI assistant directly through a phone call.

In this example, Voice Bridge uses Qwen Audio Realtime. The caller's voice is sent from the controlled host to Qwen through NanoKVM Go, and the model's generated voice is sent back to the controlled host through the NanoKVM Go UAC2 virtual microphone. The App also shows transcripts for both sides on the device screen.

Caller phone -> controlled host call audio -> NanoKVM Go -> Qwen Audio Realtime
Caller phone <- controlled host call audio <- NanoKVM Go <- Qwen Audio Realtime

What You Can Build

Voice Bridge can be used to quickly build and verify:

  • AI phone customer-service demos;
  • realtime voice assistants and voice bots;
  • call-test setups with live transcripts;
  • prompt, voice, and realtime model validation workflows.

This guide only covers installing and running the official device-side App. You do not need to understand MCP, WebRTC, Opus, or audio resampling to try it. If you plan to replace the model, add a knowledge base or Agent, or customize the audio pipeline, first complete this quick start, confirm that the base workflow works, and then read the Realtime Voice Chat Technical Guide.

Final Result

After installation, open Voice Bridge from the NanoKVM Go Apps page, then start a phone call. The device screen shows the running status and transcripts:

NanoKVM Go Voice Bridge App interface

Before You Start

Before installing the App, make sure that:

  • NanoKVM Go is connected to the controlled host, and you can access its web interface;
  • the NanoKVM Go system and application are updated to the latest versions;
  • NanoKVM Go can access the internet to download App dependencies and connect to Qwen;
  • the phone is connected according to the device requirements and can make calls normally;
  • the controlled host can detect the NanoKVM Go UAC2 virtual microphone and speaker devices;
  • you have an Alibaba Cloud account, or you are ready to register one and enable Alibaba Cloud Model Studio.

If the web settings do not include Apps or MCP Service, check for and install the latest NanoKVM Go system and application updates.

Get Connection Information

Before installing the App, prepare the NanoKVM Go MCP API key, plus the Qwen Workspace ID and API key.

Enable MCP Service

Open the NanoKVM Go web interface, go to Settings > AI > MCP Service, enable MCP Service, and copy the API Key shown on the page. Voice Bridge uses this key to create two-way NanoKVM Go audio sessions.

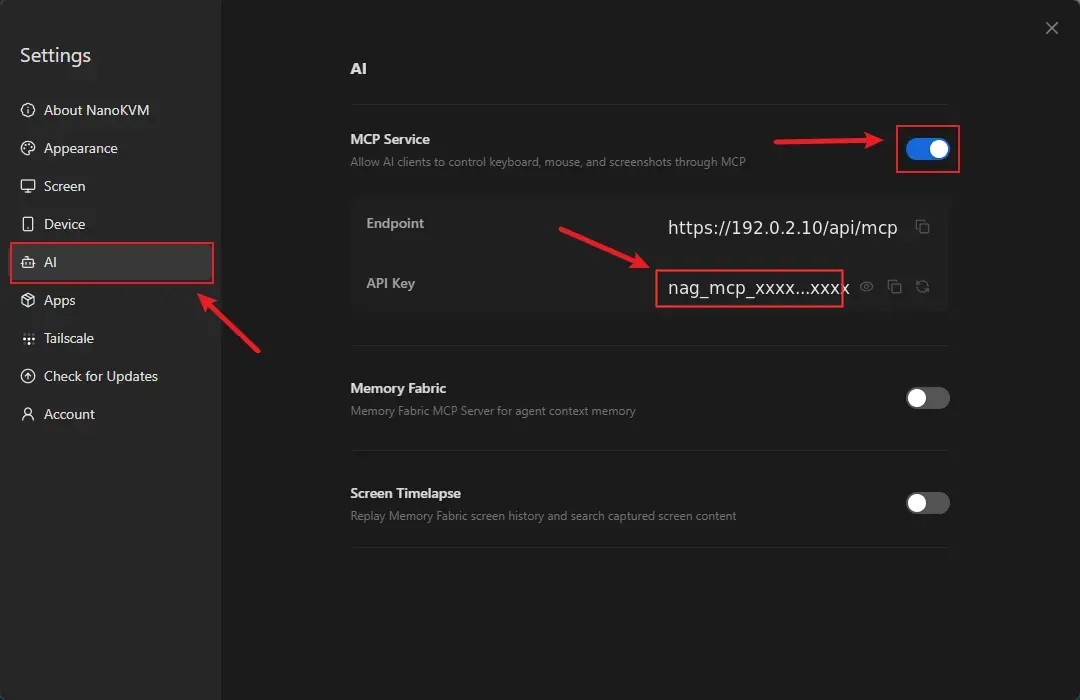

NanoKVM Go MCP Service settings

Do not share the MCP API key with others, and do not write real keys into source code or public repositories.

Enable Virtual Audio

Open the NanoKVM Go web interface, go to Settings > Device > Virtual Audio, and enable Virtual Audio. Then check the controlled host's system audio settings and confirm that the NanoKVM Go UAC2 virtual microphone and speaker devices are detected.

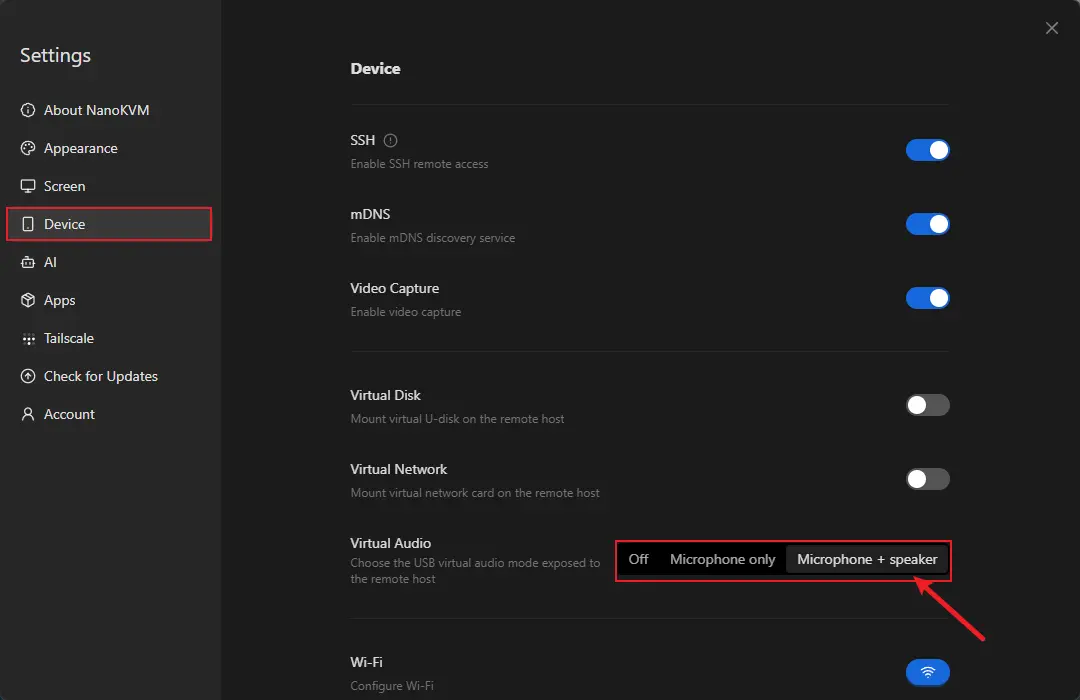

NanoKVM Go Virtual Audio settings

Get Qwen Connection Information

  1. Open the Alibaba Cloud Model Studio console, register or sign in to an Alibaba Cloud account, and enable Model Studio as prompted.

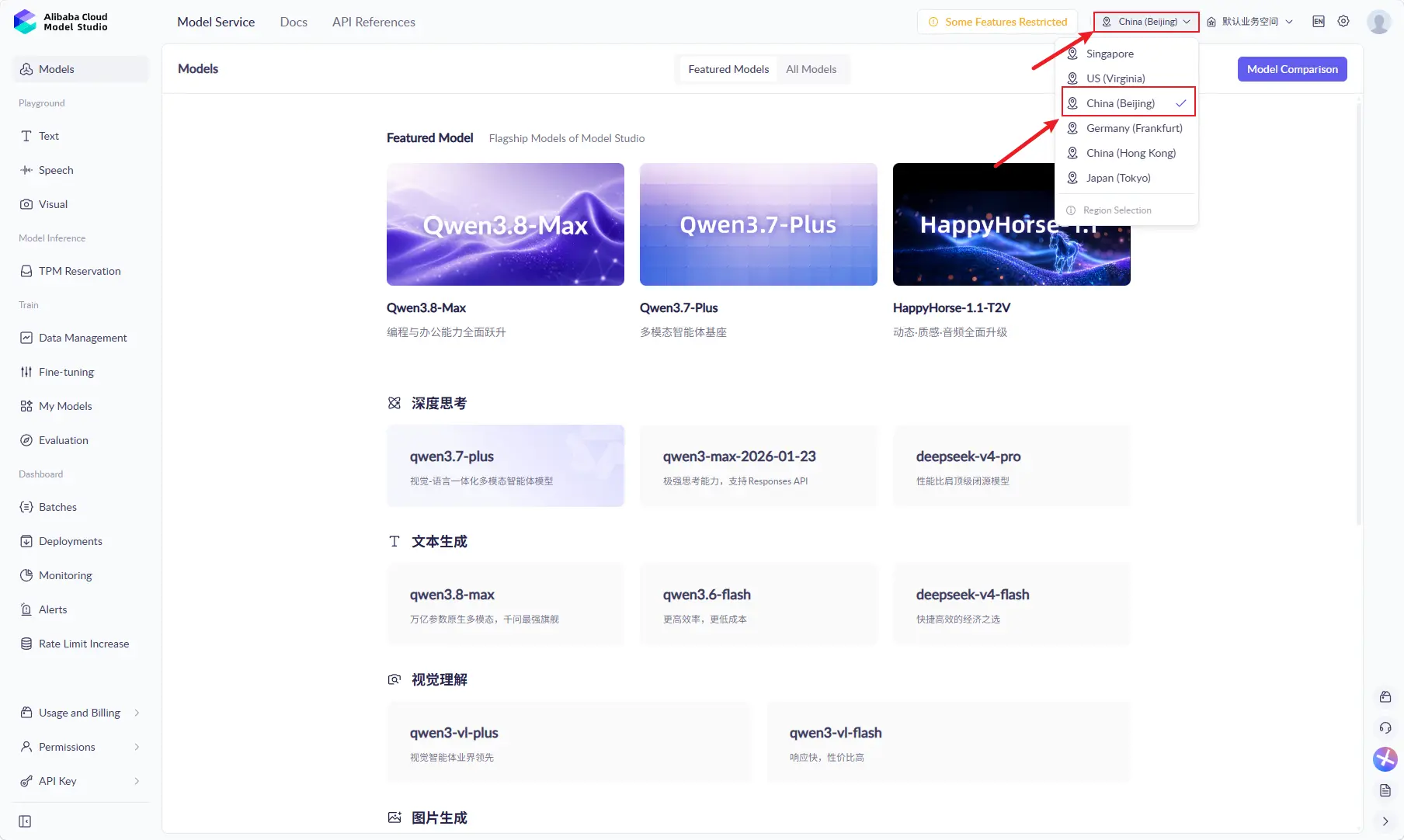

  2. Select China (Beijing). The default qwen-audio-3.0-realtime-flash model used by Voice Bridge is currently available only in this region.

Select a Model Studio region

  1. Open the API Key page.

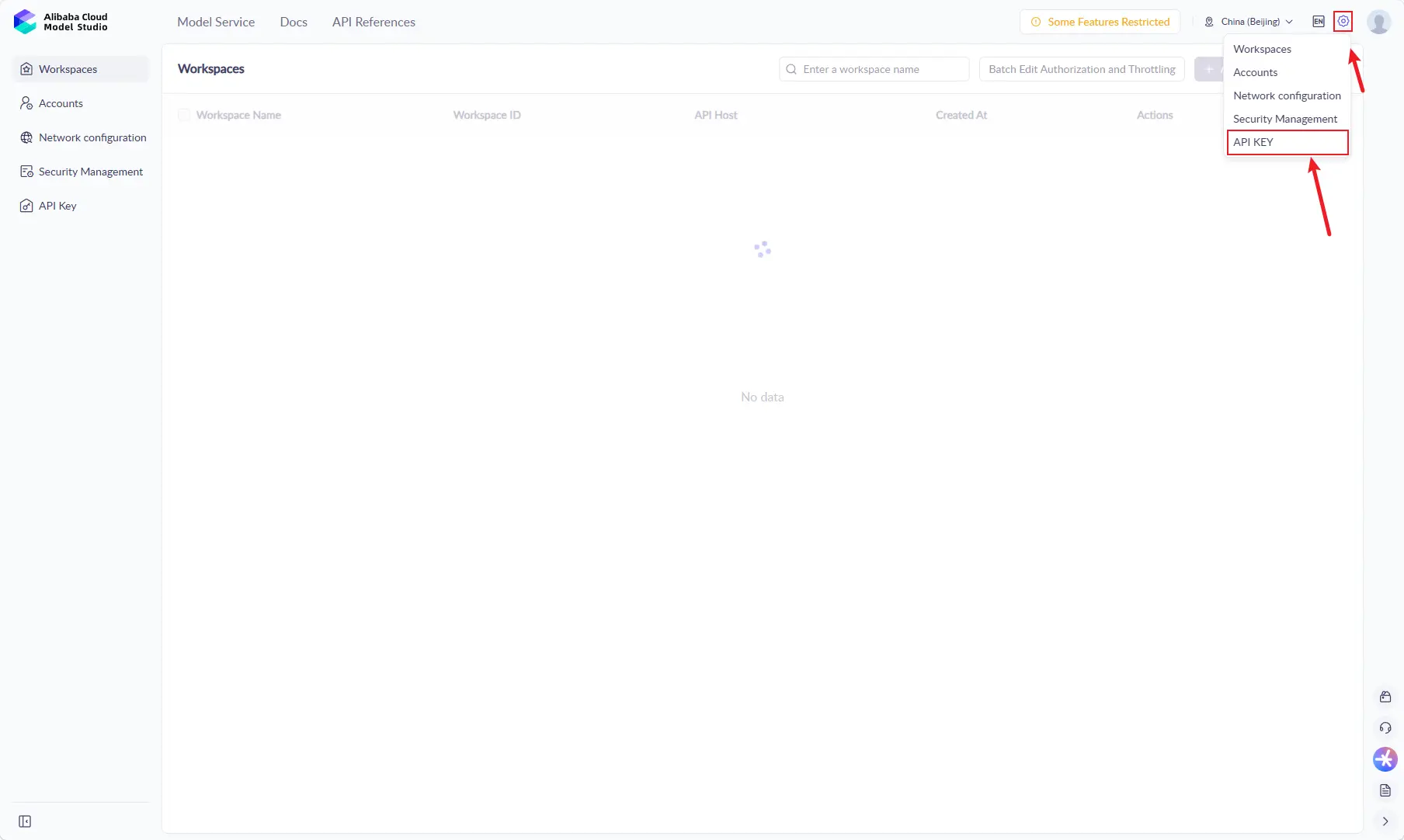

Open the Model Studio API Key page

  1. Create an API key for Voice Bridge. Copy and save the full key immediately after it is created.

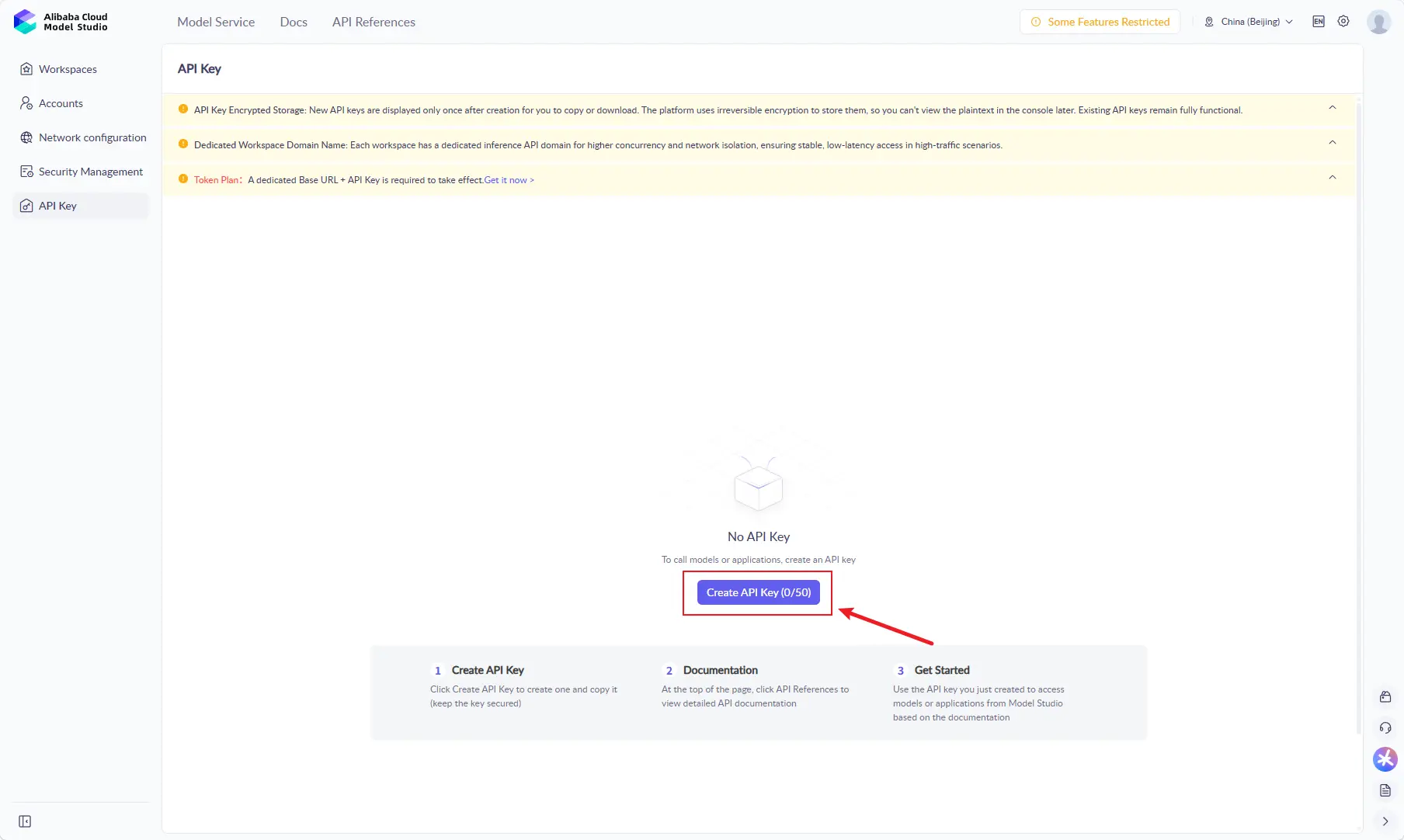

Open the Model Studio API key creation page

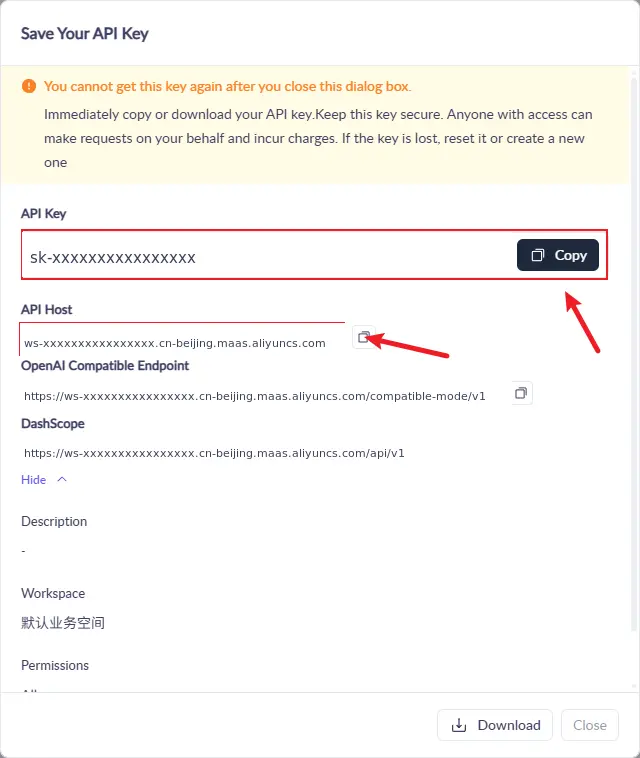

Save the Model Studio API key and API Host

  1. After the key is created, the page shows an API Host value. It may be shown as a hostname or as part of a full endpoint URL. QWEN_WORKSPACE_ID is the leading ws-... part of that host, and QWEN_REGION is the region segment that follows it.

For example:

API Host:
https://ws-xxxxxxxxxxxxxxxx.cn-beijing.maas.aliyuncs.com

In this case, enter the following values:

Qwen Workspace ID: ws-xxxxxxxxxxxxxxxx
Qwen region: cn-beijing
  1. Confirm the realtime voice model name and supported region in the Model Studio console or the Qwen-Audio Realtime documentation.

When configuring Voice Bridge later, provide or verify these Qwen fields:

  • Qwen Workspace ID (QWEN_WORKSPACE_ID);
  • Qwen API key (QWEN_API_KEY);
  • Qwen region (QWEN_REGION), which must exactly match the region segment in the API Host.

For the Beijing setup above, Qwen region and Qwen realtime model can keep the App defaults. Always verify that the region matches the API Host before installation.

Available models, regions, quotas, and free usage may vary by account. Use the Model Studio console as the source of truth.

Install and Configure Voice Bridge

Voice Bridge can be installed directly from the built-in Sipeed official App Server on NanoKVM Go. SSH, SCP, apt install, and manual pip install are not required.

  1. Log in to the NanoKVM Go web interface and open Settings > Apps > Store.
  2. Select the built-in Sipeed official repository.

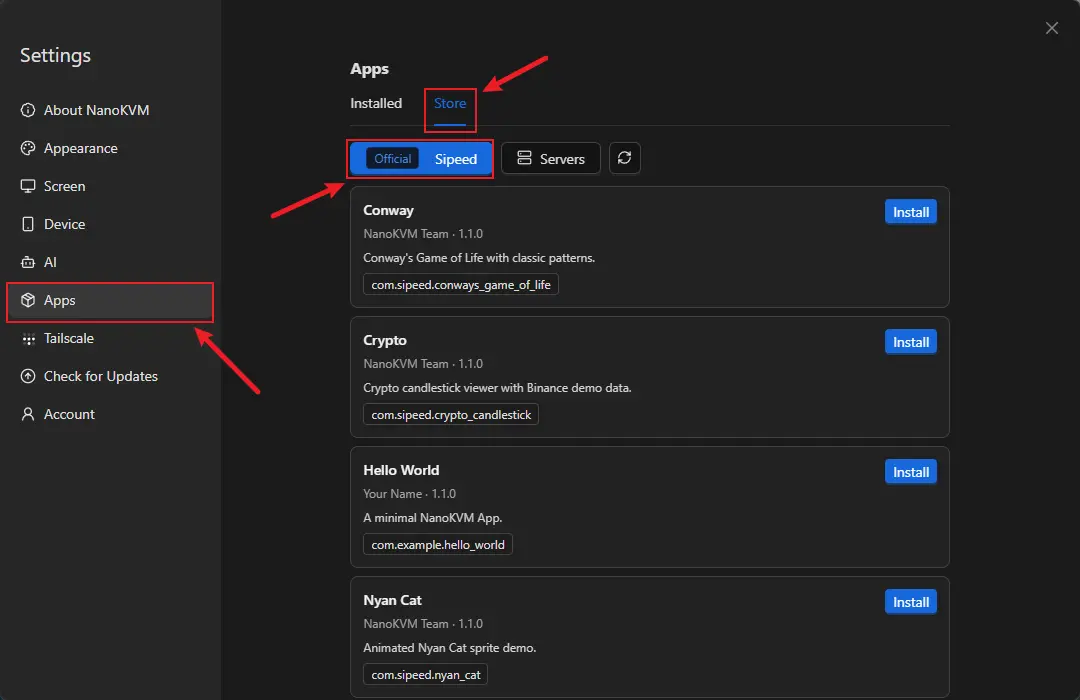

Select the Sipeed official repository

  1. Find Voice Bridge, then click Install.

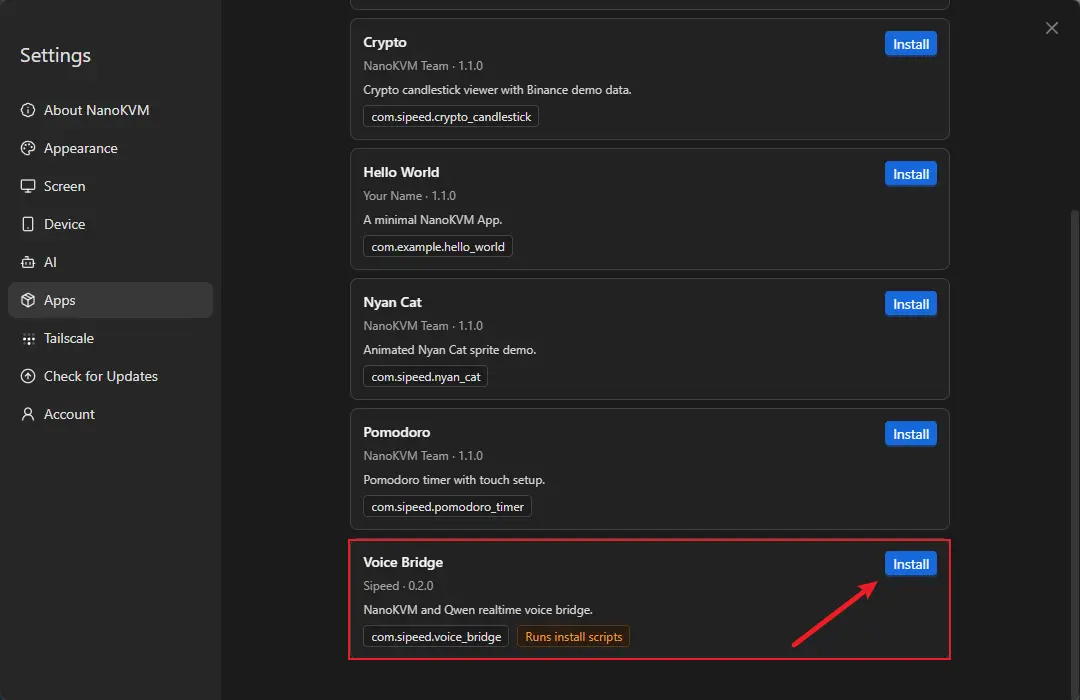

Install Voice Bridge from the App Store

  1. Wait for the installation configuration window to open.

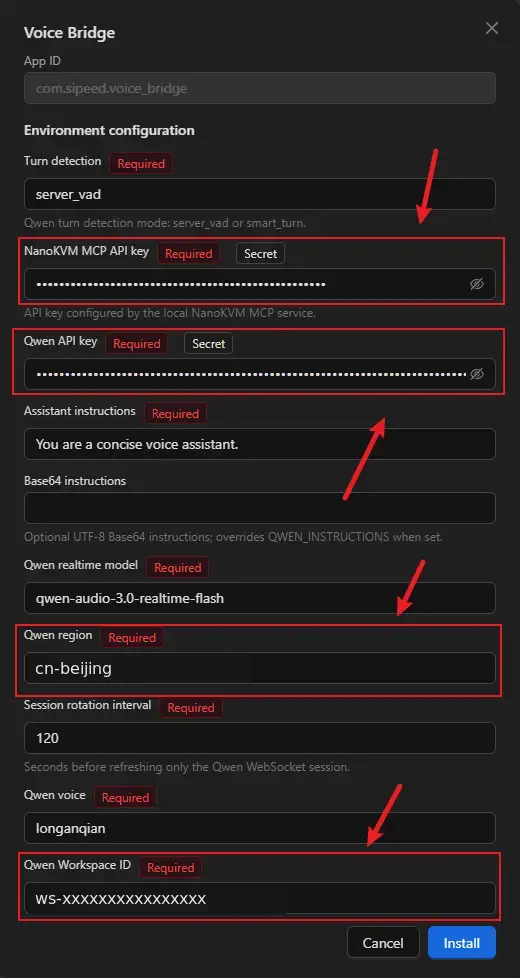

  2. Fill in the automatically generated environment form. The web form shows user-facing field names, while the App saves them as environment variables internally. For a first test, fill in NanoKVM MCP API key, Qwen Workspace ID, and Qwen API key. Confirm that Qwen region is cn-beijing, matching the API Host; the other fields can usually keep their defaults.
Web form field Environment variable Description
Turn detection INTERACT_TYPE Has a default value. Sets the turn detection mode. Available values include server_vad and smart_turn.
NanoKVM MCP API key NANOKVM_MCP_KEY Get it from the NanoKVM Go MCP Service page.
Qwen API key QWEN_API_KEY Create it in the Model Studio console.
Assistant instructions QWEN_INSTRUCTIONS Has a default value. Sets the assistant identity, response style, and task requirements.
Base64 instructions QWEN_INSTRUCTIONS_B64 Optional. Base64-encoded UTF-8 instructions. If set, this overrides regular instructions. Leave it empty for the first test.
Qwen realtime model QWEN_MODEL Has a default value. Change it only if your account requires a different available realtime voice model.
Qwen region QWEN_REGION Has a default value. For this guide, keep cn-beijing and confirm that it matches the region segment in the API Host.
Session rotation interval QWEN_SESSION_ROTATE_SECONDS Has a default value. Sets the interval for rotating the Qwen session.
Qwen voice QWEN_VOICE Has a default value. Sets the voice used by model responses.
Qwen Workspace ID QWEN_WORKSPACE_ID Get it from the ws-... prefix of the Model Studio API Host.

Voice Bridge installation configuration window

Field names and default values may change with App updates. Use the current environment form and Qwen official documentation as the source of truth.

  1. After filling in the form, click Install and keep the Installation log window open until the page shows that installation succeeded.

Voice Bridge automatically installs build dependencies and installs pinned Python dependencies into the App's own python/ directory. The first installation downloads and builds ARM dependencies, so it usually takes several minutes. The log window shows package download, build, and installation progress.

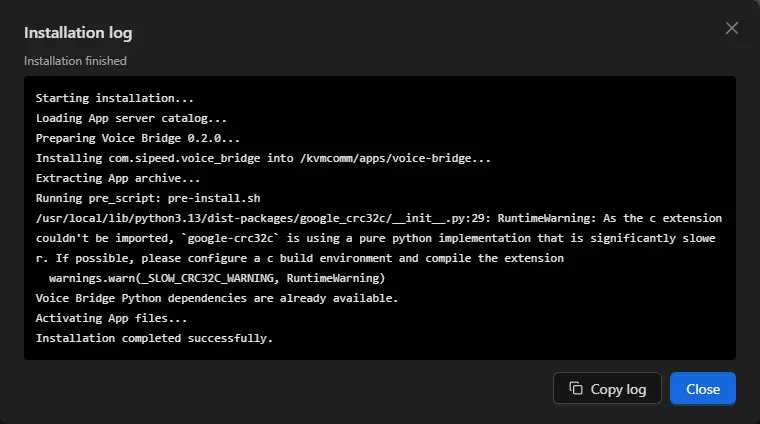

Voice Bridge installation log

If installation fails, click Copy log, save the full log, and check the end of the log for network, package source, storage, or Python package build errors.

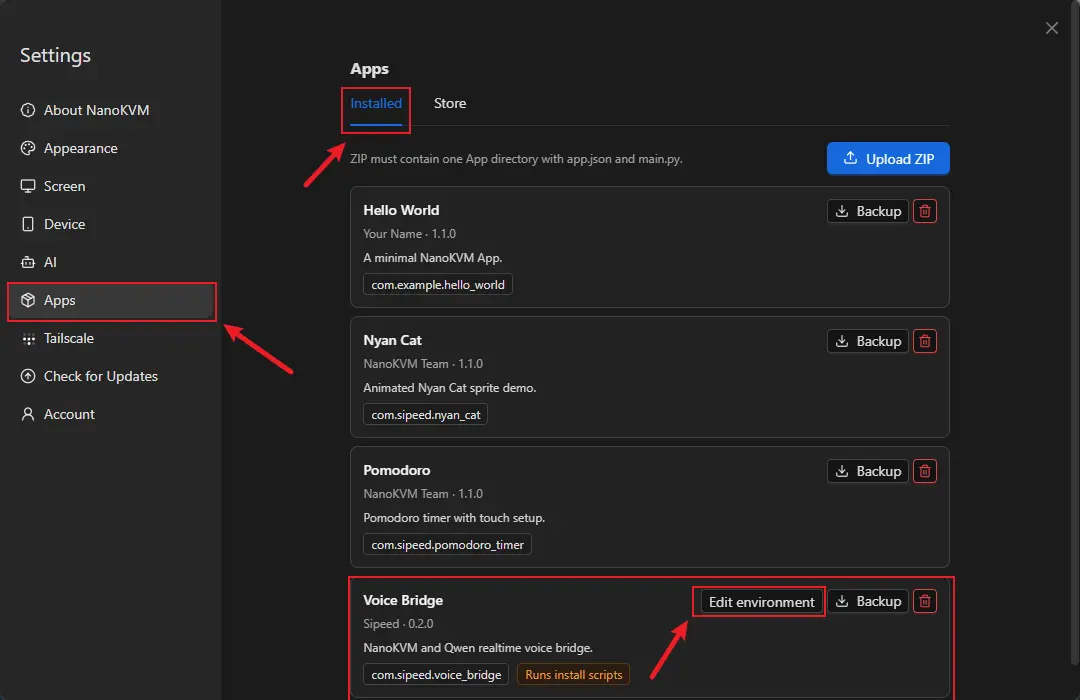

After installation, you can update the Voice Bridge environment configuration from Settings > Apps > Installed. New values take effect the next time the App starts.

Manage the installed Voice Bridge App

Run and Test

Start the App

  1. Open the Apps page on the NanoKVM Go touchscreen.
  2. Select Voice Bridge and launch it.
  3. Wait until the App reports that the model and audio connections are ready.

Start a Voice Conversation

  1. Make a phone call and answer it on the controlled host.
  2. Speak into the phone.
  3. Confirm that the NanoKVM Go screen shows the user transcript.
  4. Wait for Qwen to respond, and confirm that the model transcript appears.
  5. Confirm that the model voice response is sent back to the phone through the controlled host.

This workflow has been verified with Android phones and iPhones.

FAQ

The Controlled Host Cannot Hear the Model Response

In the controlled host's system audio settings or call software, select the NanoKVM Go UAC2 virtual microphone as the input device, and check that the input is not muted.

The App Does Not Receive Phone Audio

Confirm that the phone call is using USB audio, and select the NanoKVM Go UAC2 virtual speaker in the controlled host's system audio settings or call software. This workflow cannot use DP audio to transfer phone call media.

The App Cannot Connect to Qwen

Check that Qwen API key, Qwen Workspace ID, Qwen region, and Qwen realtime model match, and confirm that NanoKVM Go can access the internet. Model permissions, quota, or rate limits on the account may also cause connection failures.

Configuration Changes Do Not Take Effect

Exit Voice Bridge, save the new configuration from Settings > Apps > Installed, and restart the App. New environment values take effect the next time the App starts.

How to Exit the App

After Voice Bridge exits, it closes the model, WebRTC, and media sessions, and it does not keep playing audio in the background. For the common App exit gesture and management method, see Custom Apps: Exit an App.

Learn More and Customize

The official device-side example source code is in the voice-bridge/ directory of the NanoKVM-Go-Apps main branch. The shared App SDK and development documentation are in the base branch.

If you need to replace Qwen, connect another realtime voice model, or add a knowledge base, Agent, business tools, or custom audio processing, continue with the Realtime Voice Chat Technical Guide.

References: NanoKVM-Go-Apps · Alibaba Cloud Model Studio console · Get an API key · Get a Workspace ID · Qwen Audio Realtime documentation
