Overview
SPMOD-BT(Bluetooth module) uses YDJ-23.

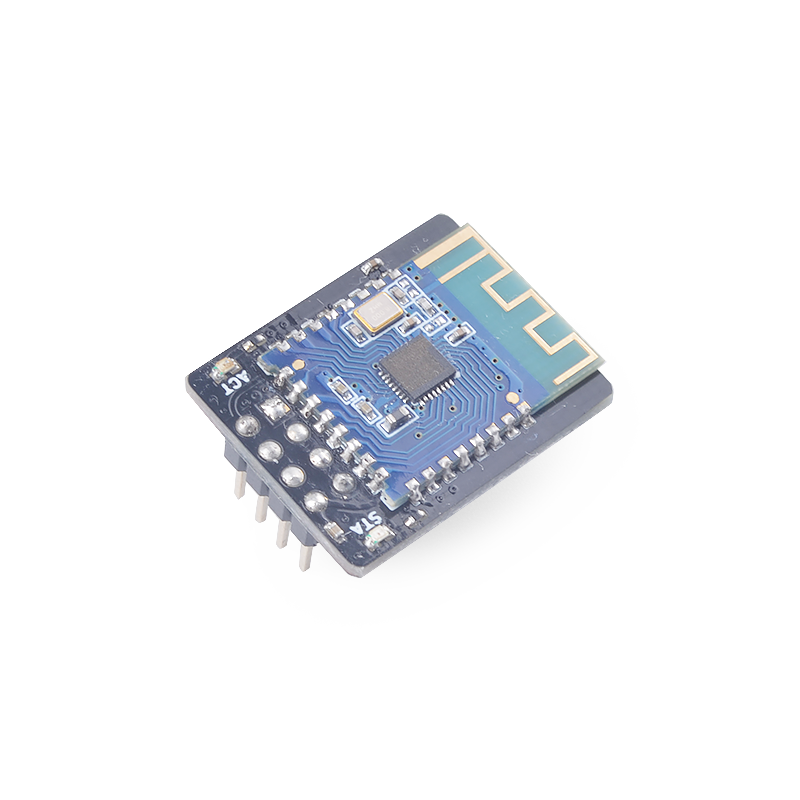

SPMOD - BLE Introduction
- Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
- Using SP-MOD UART to communicate with Bluetooth module
- JDY-23 Bluetooth module:Support BLE 5.0(Compatible with BLE4.0、BLE4.2).Communication interface adopts UART interface. The module supports AT command control. It has ultra-low power design and high reliability design.
- Two built-in LED,making module status easier to see.
- Size:25.6*20.2*3.2mm
JDY-23 Introduction:
Features: |
--- |
Working Frequency: |
2.4GHz |
Transmission Power: |
4db(maixmun) |
Communication Interface: |
UART |
Supply voltage of external power supply : |
1.8V~3.6V |
Range of working temperature : |
-40℃ - 80℃ |
Antenna: |
Built-in PCB antenna |
Reception Sensitivity: |
-97dbm |
Support master-slave: |
Slave |
Bluetooth Version: |
BLE 5.0(Compatible with BLE4.0、BLE4.2) |
Awakening Current State: |
800uA(Transmission) |
Sleep Status of Current: |
<50uA (Transmission) |
Deep Sleep of Current: |
9uA (Not transmission) |
Default baud rate: |
9600 |

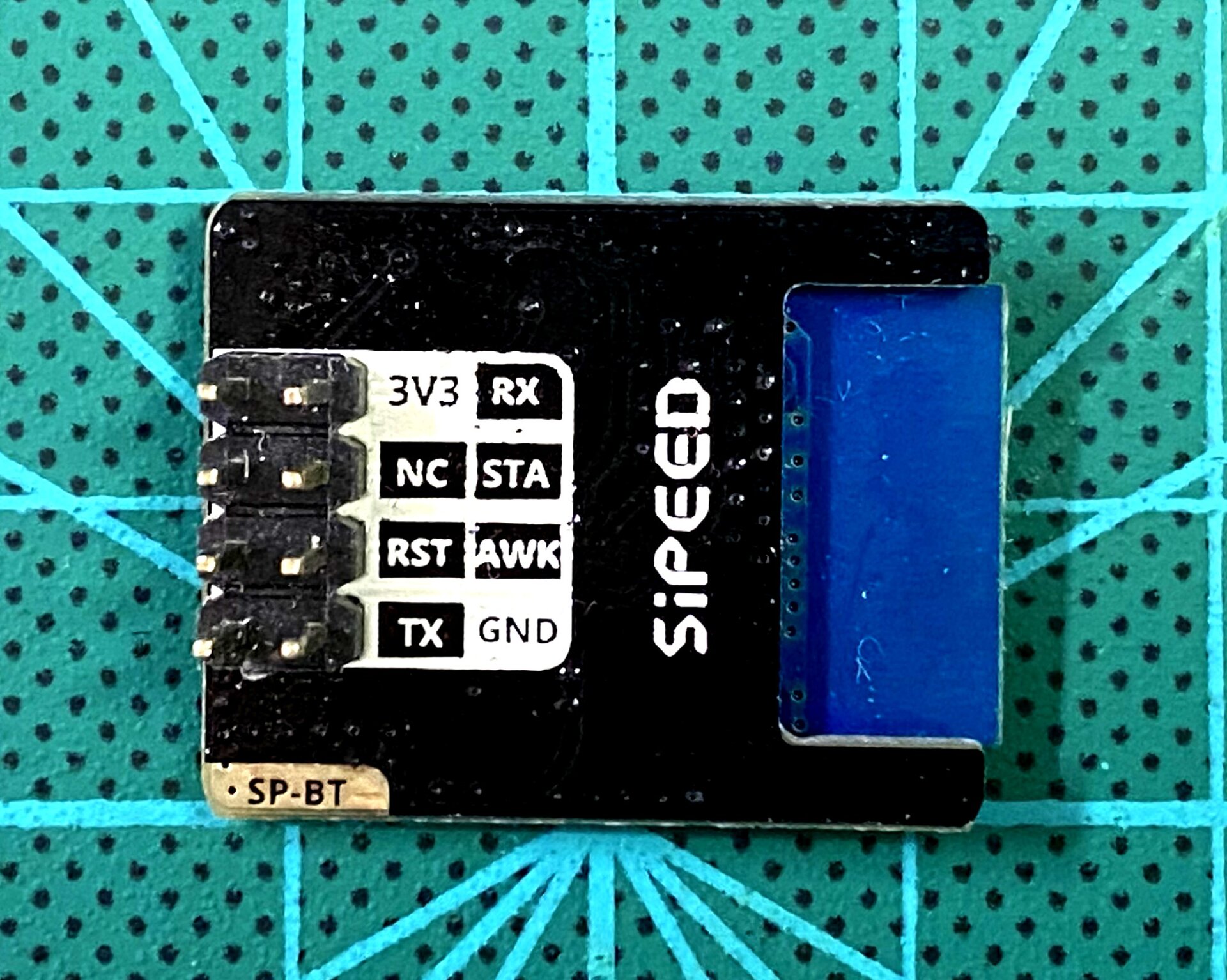

SPMOD_BT pin description :
Pin |
Name |
Type |
Description |
1 |
GND |
G |
Ground |
2 |
AWK |
I/O |
Sleep wake-up pin (active low) |
3 |
STA |
I/O |
The status of the pin connection |
4 |
RX |
I |
Serial input pin (TTL level) |
5 |
3V3 |
V |
Power supply(3.3V) |
6 |
--- |
NC |
Not connected |
7 |
RST |
I/O |
Reset (active low) |
8 |
TX |
O |
Serial output pin (TTL level) |
MCU:FUN(IO) |
SP_BT |
UART:TX(IO_7) |
RX |
USRT:RX(IO_6) |
TX |
1.8-3.3V |
3.3V |
GND |
GND |
AT instruction list:
Order |
Description |
AT+POWR |
Get transmit power |
AT+RST |
Soft reset |
AT+MAC |
Display MAC address |
AT+NAME |
Display Transmission name |
AT+HOSTEN |
Slave mode or IBEACON work mode |
AT+IBUUID |
UUID of IBEACON |
AT+DISC |
Disconnect |
AT+SLEEP |
Configures the Sleep mode |
AT+MTU |
Set the serial port for the APP to send a long number of packets |
See JDY-23-V2.1.pdf for more information
Usage
- Process
- Send AT instruction
- Receive the reply
- Determines whether the setup was successful
C :
// set uart rx/tx func to io_6/7
fpioa_set_function(6, FUNC_UART1_RX + UART_NUM * 2);
fpioa_set_function(7, FUNC_UART1_TX + UART_NUM * 2);
uart_init(UART_DEVICE_1);
uart_configure(UART_DEVICE_1, 9600, 8, UART_STOP_1, UART_PARITY_NONE);
//change the name of sp_bt module to MAIXCUBE
uart_send_data(UART_NUM, "AT+NAMEMAIXCUBE\r\n", strlen("AT+NAMEMAIXCUBE\r\n")); //send AT order
msleep(100);
ret = uart_receive_data(UART_NUM, rcv_buf, sizeof(rcv_buf)); //receive response
if(ret != 0 && strstr(rcv_buf, "OK"))
{
printk(LOG_COLOR_W "set name success!\r\n");
}
// get the name of sp_bt module
uart_send_data(UART_NUM, "AT+NAME\r\n", strlen("AT+NAME\r\n")); //send AT order
msleep(100);
ret = uart_receive_data(UART_NUM, rcv_buf, sizeof(rcv_buf)); //receive response
if(ret != 0 && strstr(rcv_buf, "NAME"))
{
printk(LOG_COLOR_W "get name success!\r\n");
}
MaixPy :
# set uart rx/tx func to io_6/7
fm.register(6,fm.fpioa.UART1_RX)
fm.register(7,fm.fpioa.UART1_TX)
uart = UART(UART.UART1,9600,8,1,0,timeout=1000, read_buf_len=4096)
#change the name of sp_bt module to MAIXCUBE
uart.write("AT+NAMEMAIXCUBE\r\n") #send AT order
time.sleep_ms(100)
read_data = uart.read() #receive response
if read_data:
read_str = read_data.decode('utf-8')
count = read_str.count("OK")
if count != 0:
uart.write("set name success\r\n")
# get the name of sp_bt module
uart.write("AT+NAME\r\n") #send AT order
time.sleep_ms(100)
read_data = uart.read() #receive response
if read_data:
read_str = read_data.decode('utf-8')
count = read_str.count("NAME")
if count != 0:
uart.write("get name success\r\n")
Note that you must add \r\n after sending AT instruction
Result:
Using BLE Utility to connect the device to do the send and receive test results are as follows:
Runtime environments:
Language |
Board |
SDK/Firmware version |
C |
MaixCube |
kendryte-standalone-sdk v0.5.6 |
MaixPy |
MaixCube |
maixpy v0.5.1 |
