Screen Expansion LED Strip

2025-09-12
Update history
Date Version Author Update content
2025-9-05 v0.1 iawak9lkm
  • Release docs

Package Accessories Overview

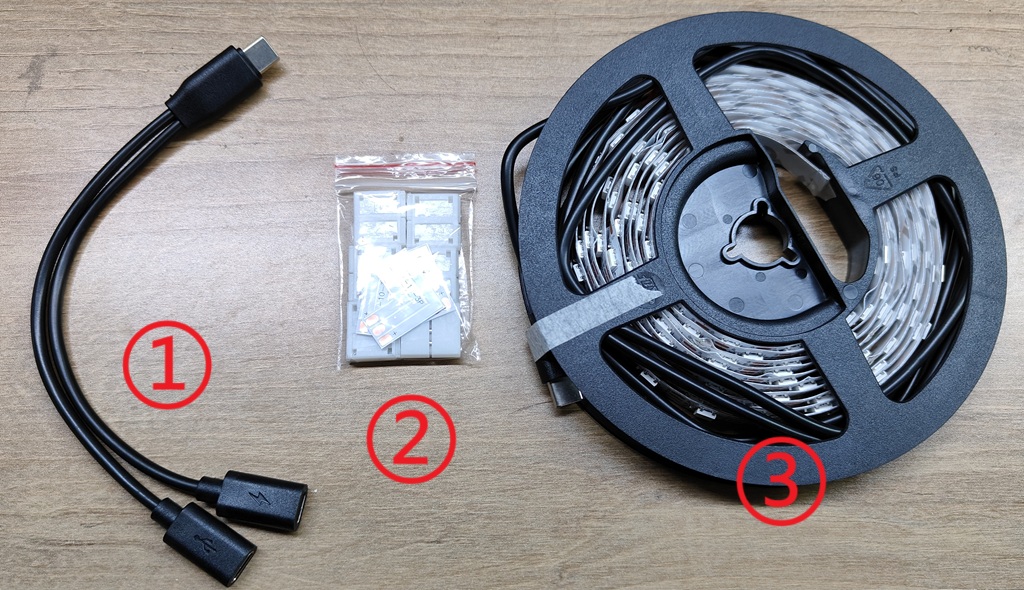

If you purchased the LED strip package, you will receive the following items:

ledstrip\_ov

  1. 1-to-2 data cable
  2. LED strip adapter kit (includes 6 adapters and 3 right-angle cables)
  3. One roll of LED strip

Installation Steps

Confirm Installation Orientation

ledstrip_screen

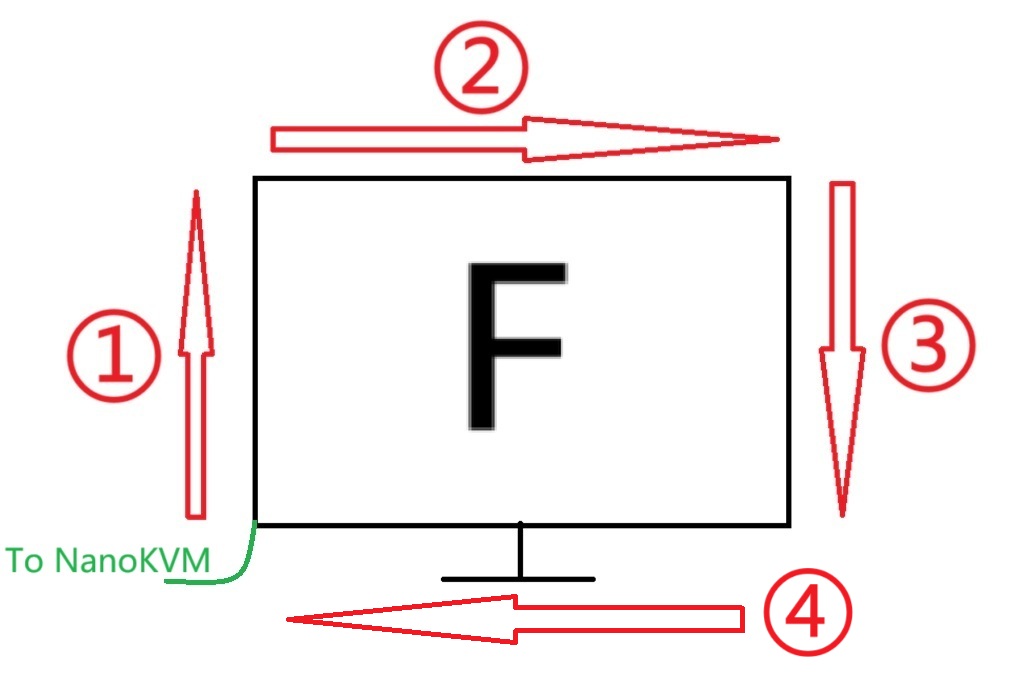

Segment ④ is optional. You can choose between three-sided or four-sided mode based on your needs.

The sampling order of the strip is: Bottom-left → Top-left → Top-right → Bottom-right → Bottom-left.
Ensure consistency during installation. The green end is the strip’s Type-C connector, and the other end connects to NanoKVM-Pro via the adapter cable.

Cut the LED Strip

ledstrip_cut_st0

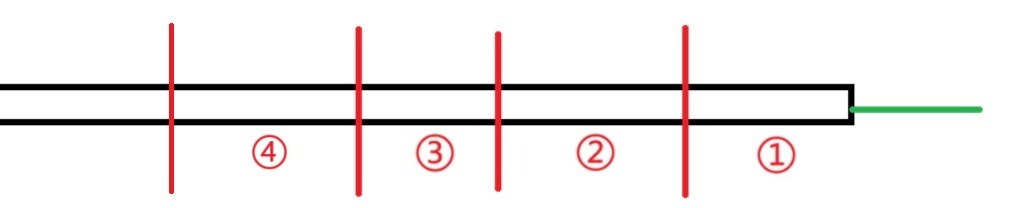

Cut the LED strip according to the screen’s width and height.

The number of LEDs on opposite sides must remain consistent.

Example: Screen height 18 LEDs, width 30 LEDs.

  • Segment ①: 18 LEDs
  • Segment ②: 30 LEDs
  • Segment ③: 18 LEDs
  • Segment ④: 30 LEDs

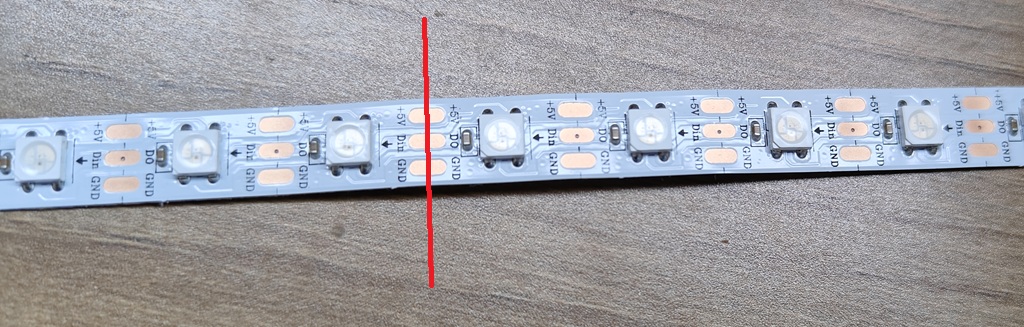

When cutting, make sure to cut along the red line (the midpoint between contacts):

ledstrip_cut_st1

Open the Adapter Connector

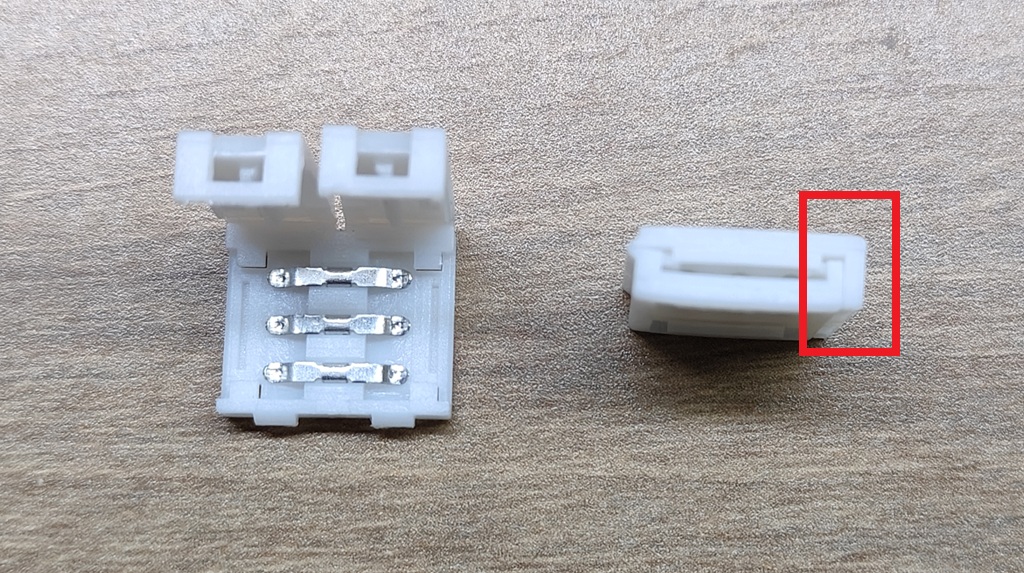

In the image below, the right side shows the side view of the adapter connector. Pry open the connector at the red-marked area, resulting in the state shown on the left:

ledstrip_con_st2

Insert the Cables

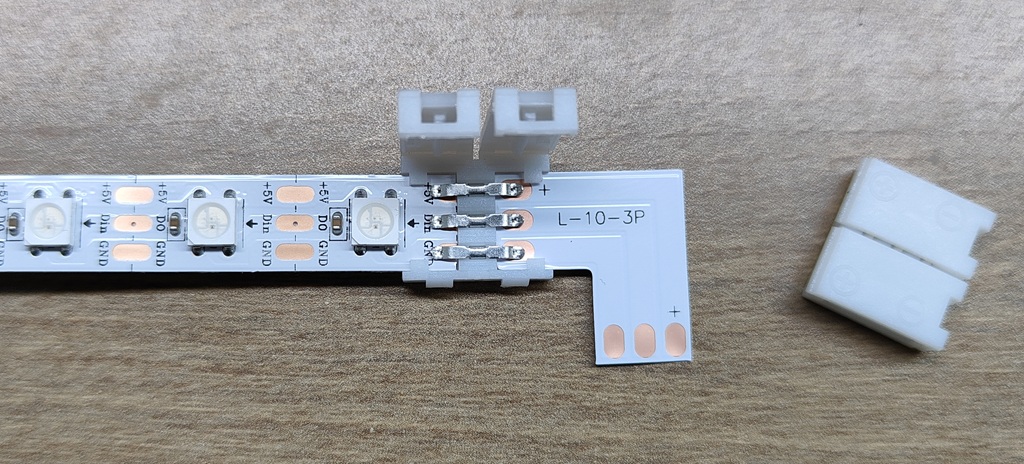

Insert the LED strip and right-angle cable into opposite sides of the adapter connector, ensuring that the metal contacts align with the bridging metal inside the connector. Close the connector to secure.

ledstrip_con_st3

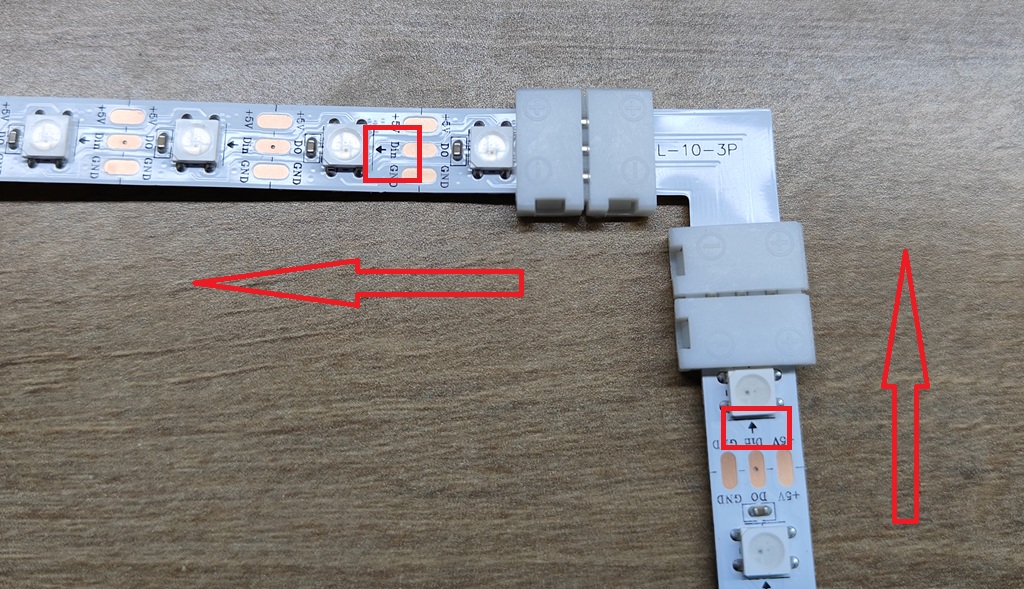

Connect the other end of the right-angle cable. Ensure that the arrow direction on the LED strip (signal flow direction) remains consistent.
Repeat this process until all strips are connected.

ledstrip_con_st4

Attach the LED Strip

Peel off the protective film of the double-sided adhesive on the back of the strip, then firmly attach it to the back of the screen.

Connect to NanoKVM-Pro

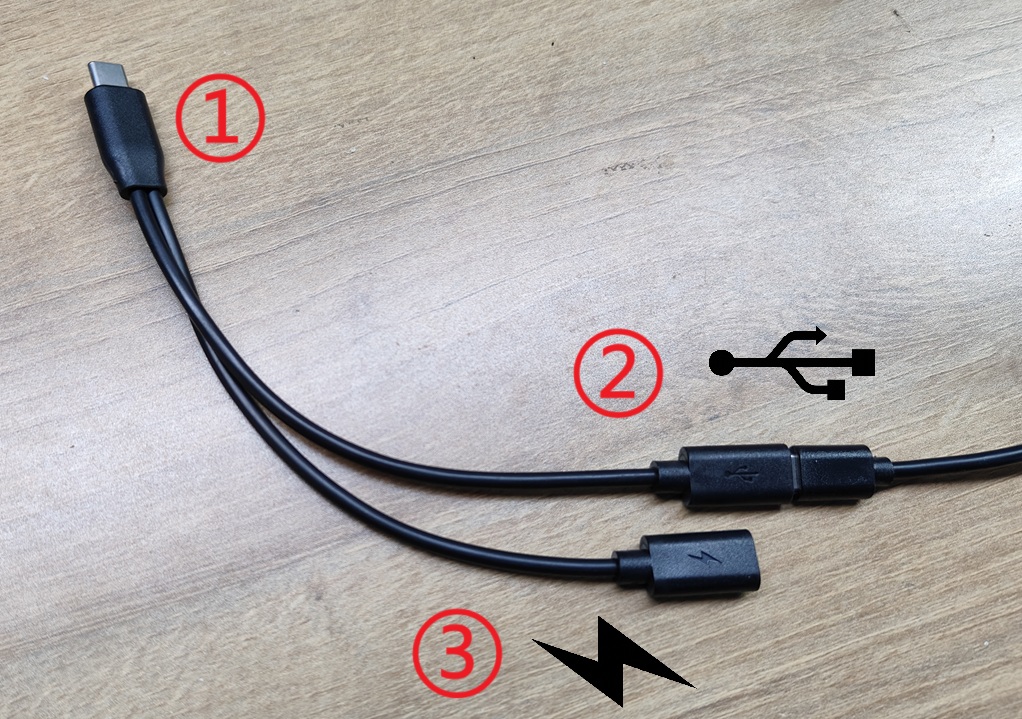

The connection layout is as follows:

  • ① Connect to NanoKVM-Pro PWR port
  • ② Connect to LED strip
  • ③ Connect to power adapter

⚠️ Note: Please ensure the power supply specification is 5V ≥ 3A.

ledstrip_pwr

Enable the LED Strip

  • Enable via Web

    1. Log in to NanoKVM via a browser

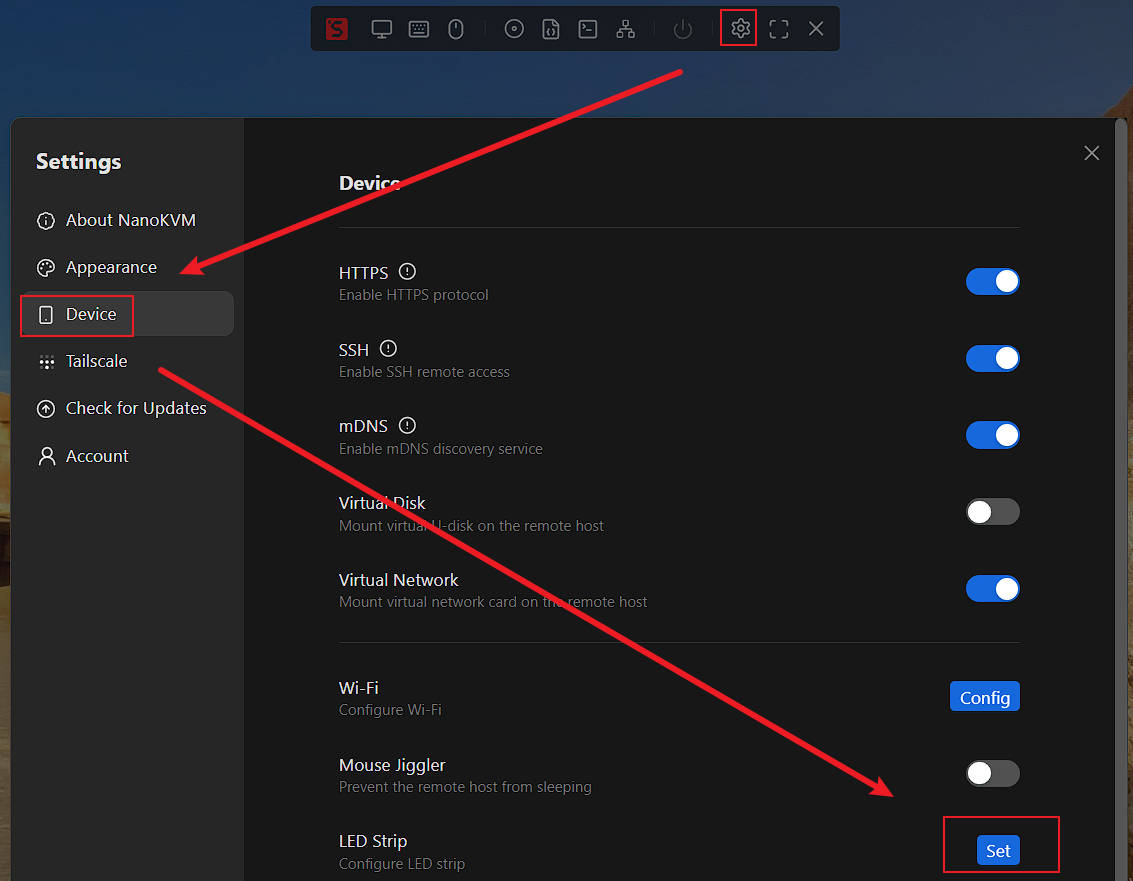

    2. Navigate to Settings → Device → LED Strip Settings

    ledstrip_web1_en

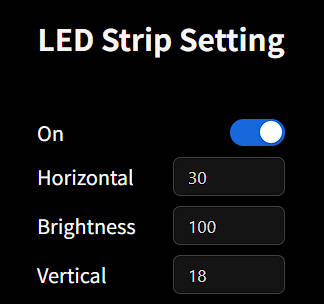

    1. Enter the number of LEDs and enable the feature

    ledstrip_web2_en

  • Enable via Desk UI

    1. Go to the Settings page
    2. Select Ambilight to enter the sub-settings page
    3. Configure the number of LEDs and enable the feature

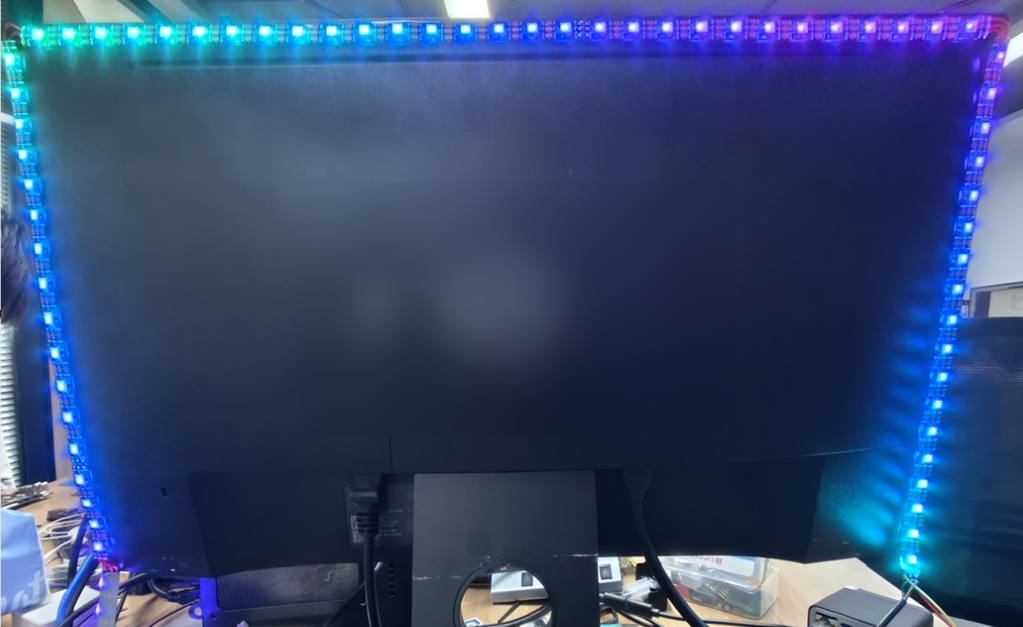

Demonstration

ledstrip_show
