SPMOD - LCD 1.14

Outline

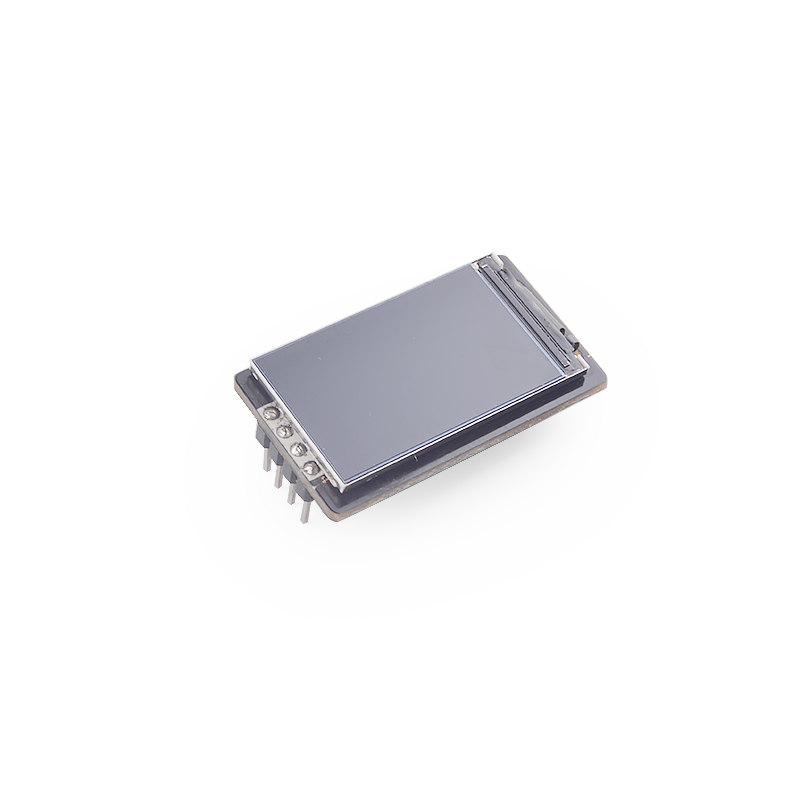

SPMOD_LCD1.14(1.14 inch LCD) uses ST7735S TFT LCD.

SPMOD - LCD1.14 Introduction

  • Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
  • Using commom LCD driver IC ST7735S(4-wire SPI communicate)
  • Display Resolution:240*135
  • Size:35.0*20.0mm

ST7735S TFT LCD Introduction

Features: ---
Supply voltage of external power supply 2.5V~4.8V
Supply current of external power supply <20mA
Range of working temperature -30℃ ~ 85℃
Sleep Status of Current <0.1mA
Screen Size 1.14 inch
Active Area 1.7mm * 10.8mm
Display Resolution 160*80
Color 132 RGB channels
Interface 8P FPC (0.5mm pitch)

DC/DC Converter, Adjustable VCOM Generation, Non-volatile (NV) Memory to Store Initial Register Setting, Oscillator for Display Clock Generation, Factory default value (module ID, module version, etc) are stored in NV memory, Timing Controller,

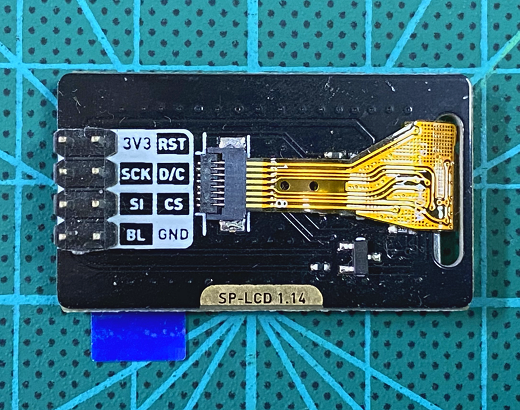

SPMOD_LCD1.14 pin description :

Pin Name Type Description
1 GND G Ground
2 CS I Chip Select input pin
3 D/C I Data/Command control pin
4 RST I Reset (active low)
5 3V3 V Power supply(3.3V)
6 SCK I SPI clock pin
7 SI I/O Master Out Slave In
8 BL I BackLight control pin (active high)

  • Mode of connection:
MCU:FUN(IO) SP_LCD
GPIOHS7(IO_7) RST
GPIOHS15(IO_15) D/C
SPI:SS0(IO_20) CS
SPI:SCK(IO_21) SCK
SPI:MOSI(IO_8) SI
GPIOHS6(IO_6) BL
2.5~4.8V 3.3V
GND GND

Usage

  • Process
    1. Send AT instruction
    2. Receive the reply
    3. Determines whether the setup was successful

C :


  fpioa_set_function(SPI_IPS_LCD_CS_PIN_NUM, FUNC_SPI1_SS0);   // SPI_IPS_LCD_CS_PIN_NUM: 20;
  fpioa_set_function(SPI_IPS_LCD_SCK_PIN_NUM, FUNC_SPI1_SCLK); // SPI_IPS_LCD_SCK_PIN_NUM: 21;
  fpioa_set_function(SPI_IPS_LCD_MOSI_PIN_NUM, FUNC_SPI1_D0);  // SPI_IPS_LCD_MOSI_PIN_NUM: 8;
  fpioa_set_function(SPI_IPS_LCD_DC_PIN_NUM, FUNC_GPIOHS0 + SPI_IPS_LCD_DC_GPIO_NUM);   // SPI_IPS_LCD_DC_PIN_NUM: 15; SPI_IPS_LCD_DC_GPIO_NUM: 15;
  fpioa_set_function(SPI_IPS_LCD_RST_PIN_NUM, FUNC_GPIOHS0 + SPI_IPS_LCD_RST_GPIO_NUM); // SPI_IPS_LCD_RST_PIN_NUM: 7; SPI_IPS_LCD_RST_GPIO_NUM: 7;
  fpioa_set_function(SPI_IPS_LCD_BL_PIN_NUM, FUNC_GPIOHS0 + SPI_IPS_LCD_BL_GPIO_NUM);   // SPI_IPS_LCD_BL_PIN_NUM: 6; SPI_IPS_LCD_BL_GPIO_NUM: 6;

  // set gpiohs work mode to output mode
  gpiohs_set_drive_mode(SPI_IPS_LCD_DC_GPIO_NUM, GPIO_DM_OUTPUT);
  gpiohs_set_drive_mode(SPI_IPS_LCD_RST_GPIO_NUM, GPIO_DM_OUTPUT);
  gpiohs_set_drive_mode(SPI_IPS_LCD_BL_GPIO_NUM, GPIO_DM_OUTPUT);

  spi_init(1, SPI_WORK_MODE_0, SPI_FF_STANDARD, DATALENGTH, 0);

  ips_lcd_init(); // init
  LCD_ShowPicture(0, 0, LCD_W, LCD_H, gImage_nanke); // display

MaixPy :


  # 20: SPI_LCD_CS_PIN_NUM;
  fm.register(SPI_LCD_CS_PIN_NUM, fm.fpioa.GPIOHS20, force=True)
  # 15: SPI_LCD_DC_PIN_NUM;
  fm.register(SPI_LCD_DC_PIN_NUM, fm.fpioa.GPIOHS15, force=True)
  # 6: SPI_LCD_BUSY_PIN_NUM;
  fm.register(SPI_LCD_BUSY_PIN_NUM, fm.fpioa.GPIOHS6, force=True)
  # 7: SPI_LCD_RST_PIN_NUM;
  fm.register(SPI_LCD_RST_PIN_NUM, fm.fpioa.GPIOHS7, force=True)

  # set gpiohs work mode to output mode
  cs = GPIO(GPIO.GPIOHS20, GPIO.OUT)
  dc = GPIO(GPIO.GPIOHS15, GPIO.OUT)
  busy = GPIO(GPIO.GPIOHS6, GPIO.OUT)
  rst = GPIO(GPIO.GPIOHS7, GPIO.OUT)

  # 21: SPI_LCD_SCK_PIN_NUM; 8: SPI_LCD_MOSI_PIN_NUM;
  spi1 = SPI(SPI_LCD_NUM, mode=SPI.MODE_MASTER, baudrate=SPI_LCD_FREQ_KHZ * 1000,
              polarity=0, phase=0, bits=8, firstbit=SPI.MSB, sck=SPI_LCD_SCK_PIN_NUM, mosi=SPI_LCD_MOSI_PIN_NUM)

  ips = SPLCD114(spi1, cs, dc, rst, busy, IPS_WIDTH, IPS_HEIGHT, IPS_MODE)

  # create an 'image' and fill it
  img = image.Image()
  img.draw_rectangle(80, 80, 30, 30)

  # display
  ips.display(img)

Runtime environments

Language Board SDK/Firmware version
C MaixCube kendryte-standalone-sdk v0.5.6
MaixPy MaixCube maixpy v0.5.1

The MaixPy firmware is recommended to compile from the latest source

Result

  • C

  • MaixPy

    sp_lcd1.14_py

Transplant

The following parameters need to be modified.

  • C
  // board_config.h
  #define SPI_INDEX           1
  #define SPI_SCLK_RATE       600*1000
  #define SPI_CHIP_SELECT_NSS 0 // SPI_CHIP_SELECT_0

  #define SPI_IPS_LCD_CS_PIN_NUM      20
  #define SPI_IPS_LCD_SCK_PIN_NUM     21
  #define SPI_IPS_LCD_MOSI_PIN_NUM    8

  #define SPI_IPS_LCD_DC_PIN_NUM     15
  #define SPI_IPS_LCD_BL_PIN_NUM      6
  #define SPI_IPS_LCD_RST_PIN_NUM     7

  #define SPI_IPS_LCD_DC_GPIO_NUM     15
  #define SPI_IPS_LCD_BL_GPIO_NUM     6
  #define SPI_IPS_LCD_RST_GPIO_NUM    7

  #define USE_HORIZONTAL 3    // 0/1 is horizontal, and 2/3 is vertical.
  • Maixpy
  ################### config ###################
  SPI_LCD_NUM = SPI.SPI1
  SPI_LCD_DC_PIN_NUM = const(15)
  SPI_LCD_BUSY_PIN_NUM = const(6)
  SPI_LCD_RST_PIN_NUM = const(7)
  SPI_LCD_CS_PIN_NUM = const(20)
  SPI_LCD_SCK_PIN_NUM = const(21)
  SPI_LCD_MOSI_PIN_NUM = const(8)
  SPI_LCD_FREQ_KHZ = const(600)
  ##############################################
