Introduction

MaixPy ships an rvv Python extension module that hardware-accelerates NumPy-compatible vector and matrix operations on platforms with the RISC-V Vector extension (RVV), such as SG2002 / C906FDV. On platforms without RVV it falls back to a scalar implementation automatically.

• Module name: rvv
• Target platform: SG2002 / C906FDV with RVV 0.7.1
• Data type: float32 only
• Design goals:
  • Accept NumPy ndarray or any object implementing the buffer protocol
  • Convert inputs internally to the float32 + C-contiguous buffers the kernel expects
  • Return numpy.ndarray when NumPy is available (pybind11 py::array_t<float>)
  • Provide a scalar fallback so the same source can be built and tested on non-RISC-V hosts

Source code and release notes: yangwenjie1231/sg2002_rvv.

Installation

Install the prebuilt wheel on MaixCAM:

pip install --force-reinstall ./clib/rvv-0.1.3-py3-none-any.whl

You can then check whether RVV acceleration is available, and fall back to CPU computation when it is not:

try:
    import rvv
    # Check that the rvv module exposes the required functions
    if hasattr(rvv, 'add') and hasattr(rvv, 'sub') and hasattr(rvv, 'norm_l2'):
        _RVV_AVAILABLE = True
        print("✓ RVV hardware acceleration available")
    else:
        _RVV_AVAILABLE = False
        rvv = None
        print("⚠ rvv module found but missing required functions, falling back to CPU")
except ImportError:
    _RVV_AVAILABLE = False
    rvv = None
    print("⚠ rvv module unavailable, falling back to CPU")

Note: the wheel itself does not depend on NumPy (install_requires=[]). However, passing numpy.ndarray inputs, or running comparison tests against NumPy, requires NumPy to be installed in the target environment. On embedded Linux, building or installing NumPy is usually not possible.

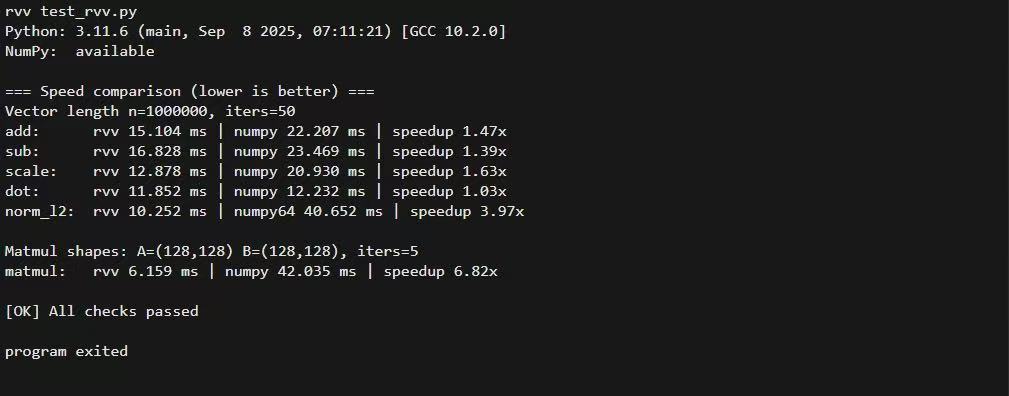

Performance comparison

On SG2002, element-wise operations such as add / sub / scale show the clearest RVV gains. Whether matmul beats NumPy depends on whether NumPy is linked against a high-performance BLAS — embedded NumPy builds usually are not, or perform poorly.

Input data model

All rvv functions read their inputs through the buffer protocol (PEP 3118).

Supported input types

• numpy.ndarray(dtype=np.float32)
• Other objects implementing the buffer protocol (some tensor libraries, custom buffers)

Hard requirements

• dtype must be float32
  • PEP 3118 format == 'f'
  • itemsize == 4
• Must be C-contiguous (row-major contiguous)
  • Non-contiguous or sliced views (strides that do not describe a contiguous layout) raise an exception

Automatic conversion

The internal as_f32_buffer() tries the NumPy path first:

• py::array_t<float, c_style | forcecast>

This means:

• When NumPy is available, float64 or non-contiguous arrays are copied/converted to contiguous float32 before computation.
• When NumPy is unavailable, only the generic buffer path is used, and inputs that violate the requirements above raise an error immediately.

For zero-copy behaviour and best performance, make sure the input already satisfies the requirements:

x = np.ascontiguousarray(x, dtype=np.float32)

API reference

The top-level module is named rvv and provides the following functions:

Function	Description
rvv.add(a, b)	1-D element-wise addition
rvv.sub(a, b)	1-D element-wise subtraction
rvv.scale(a, k)	1-D vector scaled by a scalar
rvv.dot(a, b)	1-D dot product (inner product)
rvv.norm_l2(a)	1-D L2 norm
rvv.matmul(A, B)	2-D matrix multiplication

rvv.add(a, b) -> ndarray[float32]

What it does: element-wise addition.

Parameters:

• a: 1-D float32 buffer (expected ndim=1)
• b: 1-D float32 buffer (expected ndim=1)

Returns: a 1-D float32 array with the same length as a

Errors:

• ValueError
  • a or b is not 1-D: a must have ndim=1, got ndim=...
  • a and b have different lengths: add: a and b must have the same length
  • input is not C-contiguous: a must be C-contiguous float32 buffer
• TypeError: input is not float32 (format != 'f' or itemsize != 4)

Example:

import numpy as np
import rvv

a = np.arange(8, dtype=np.float32)
b = np.ones(8, dtype=np.float32)
print(rvv.add(a, b))

rvv.sub(a, b) -> ndarray[float32]

What it does: element-wise subtraction, i.e. out[i] = a[i] - b[i].

Parameters, return value and errors are the same as add; the two vectors must have equal length.

import numpy as np
import rvv

a = np.arange(8, dtype=np.float32)
b = np.ones(8, dtype=np.float32)
print(rvv.sub(a, b))

rvv.scale(a, k) -> ndarray[float32]

What it does: scales a vector by a scalar.

Parameters:

• a: 1-D float32 buffer
• k: Python float

Returns: a 1-D float32 array

Errors: ValueError / TypeError, validated the same way as add

import numpy as np
import rvv

a = np.arange(8, dtype=np.float32)
print(rvv.scale(a, 0.5))

rvv.dot(a, b) -> float

What it does: dot product (inner product), i.e. sum_i a[i] * b[i].

Parameters:

• a: 1-D float32 buffer
• b: 1-D float32 buffer

Returns: a Python float

Errors:

• ValueError: length mismatch, dot: a and b must have the same length
• dtype / contiguity / ndim errors as above

import numpy as np
import rvv

a = np.arange(8, dtype=np.float32)
print(rvv.dot(a, a))

rvv.norm_l2(a) -> float

What it does: L2 (Euclidean) norm, defined as sqrt(dot(a, a)).

Parameters: a: 1-D float32 buffer

Returns: a Python float

A note on numerical error: dot and norm_l2 are reduction operations. For very large vectors (for example 1e6 elements), different reduction orders (RVV blocking, scalar loops, NumPy/BLAS vectorisation) can produce a very small relative error compared with NumPy. Compare with a relative tolerance (for example 1e-4 ~ 1e-3) rather than strict equality.

import numpy as np
import rvv

a = np.random.randn(1000000).astype(np.float32)
print(rvv.norm_l2(a))

rvv.matmul(A, B) -> ndarray[float32]

What it does: matrix multiplication.

• Input: A of shape (m, k), B of shape (k, n)
• Output: C of shape (m, n)

Parameters:

• A: 2-D float32 buffer (ndim=2, C-contiguous, row-major)
• B: 2-D float32 buffer (ndim=2, C-contiguous, row-major)

Returns: a 2-D float32 array

Errors:

• ValueError
  • dimension is not 2: A must have ndim=2, got ndim=...
  • shape mismatch: matmul: shape mismatch: A is (m,k) but B is (k2,n)

import numpy as np
import rvv

A = np.random.randn(2, 3).astype(np.float32)
B = np.random.randn(3, 4).astype(np.float32)
C = rvv.matmul(A, B)
print(C.shape)

Combined example

import numpy as np
import rvv

a = np.arange(8, dtype=np.float32)
b = np.arange(8, dtype=np.float32)

print(rvv.add(a, b))
print(rvv.sub(a, b))
print(rvv.scale(a, 2.0))
print(rvv.dot(a, b))
print(rvv.norm_l2(a))

A = np.arange(6, dtype=np.float32).reshape(2, 3)
B = np.arange(12, dtype=np.float32).reshape(3, 4)
print(rvv.matmul(A, B))

Common errors

... must be float32-compatible buffer ...

The input is not float32. Fix:

x = x.astype(np.float32, copy=False)

... must be C-contiguous float32 buffer

The input is a non-contiguous view, such as a slice or a transpose. Fix:

x = np.ascontiguousarray(x, dtype=np.float32)

add/sub/dot: a and b must have the same length

The two vectors have different lengths.

Performance tips

• Make sure inputs are float32 and C-contiguous to avoid unnecessary copies.
• On large arrays, add / sub / scale are where RVV gains show up most clearly.
• Whether matmul beats NumPy depends on whether NumPy is linked against a high-performance BLAS — embedded NumPy builds usually are not, or perform poorly.

Building from source

This section is for users who need to build the module on SG2002 themselves, or to develop on top of it.

Implementation map

• Python bindings: rvv_ext/main/src/bind_rvv.cpp
• C++ public interface declarations: rvv_ext/main/include/rvv.hpp
• RVV 0.7.1 implementation: rvv_ext/main/src/rvv_rvv071.cpp (compiled only when __riscv_vector is defined)
• Scalar implementation: rvv_ext/main/src/rvv_scalar.cpp

Choosing a build mode: cross-compile (MaixCAM) vs host test (Linux)

main/CMakeLists.txt supports two build modes:

• Cross-compile to SG2002 (recommended): enable MaixCam
  • Enables the RVV ISA flags (such as -march=rv64imafdcv0p7xthead)
  • Links against the SDK's python3_lib_maixcam_musl_3.11.6 headers/libraries, avoiding a missing Python.h
• Host Linux test: enable Linux
  • Tries the system Python.h first (python3-dev), then falls back to the SDK python component

The target Python is 3.11.6 (SDK component python3_lib_maixcam_musl_3.11.6).

If you see fatal error: Python.h: No such file or directory, the current build mode did not pick up the Python development headers.

Build caveats

• Always run the build from the project root rvv_ext/, not from rvv_ext/main/. Otherwise the configuration is generated under rvv_ext/main/build/... and the output looks like an infinite loop.
• The MY_SDK_PATH environment variable must be set, otherwise the build reports a missing /tools/cmds.
• When cross-compiling, TOOLCHAIN_PATH must be an absolute path, otherwise CMake reports TOOLCHAIN_PATH set error: ....
• distclean removes build/, after which cmake --build build ... fails with Error: could not load cache. You must re-run python3 project.py build to regenerate build/CMakeCache.txt first.
• NumPy usually cannot be built or installed on embedded Linux. This library's wheel does not depend on NumPy, but comparing results or speed against NumPy requires NumPy in the target environment.
• norm_l2 / dot can differ slightly from NumPy on very large vectors (for example 1e6) due to floating-point error from reduction ordering. Compare with a relative tolerance, not strict equality.

Building with Auto-bind-Python-from-CC--main

This project uses the same build system as Auto-bind-Python-from-CC--main/examples/demo.

0) Set the SDK environment variable (required)

export MY_SDK_PATH=/root/xmusic/Auto-bind-Python-from-CC--main/Auto-bind-Python-from-CC--main

1) Open menuconfig

cd /root/xmusic/rvv_ext
python3 project.py menuconfig

2) Configure the toolchain (cross-compiling to SG2002)

• -mcpu=c906fdv
• -march=rv64imafdcv0p7xthead
• -mcmodel=medany
• -mabi=lp64d

You can also configure without menuconfig by passing flags:

python3 project.py config \
  --toolchain /root/xmusic/host-tools/gcc/riscv64-linux-musl-x86_64/bin \
  --toolchain-prefix riscv64-unknown-linux-musl-

Or by using the environment variable read by the project's top-level CMakeLists.txt:

export MY_TOOLCHAIN_PATH=/root/xmusic/toolchains/maixcam/host-tools/gcc/riscv64-linux-musl-x86_64/bin

3) Build and produce the wheel

python3 project.py build

Artifacts:

• Compiled extension: build/main/libmain.so
• Wheel: dist/*.whl

4) Verify RVV is enabled (optional)

After python3 project.py build, check whether the compile command lines in the build log contain:

• -march=rv64imafdcv0p7xthead

If the flag is present, __riscv_vector should be defined and the RVV implementation (rvv_rvv071.cpp) is compiled into the library.

IDE code completion

rvv is a binary extension module (rvv.so), so an IDE cannot infer function signatures from source the way it can for pure Python. The project provides type hints through PEP 561:

• rvv_ext/rvv.pyi: module stub providing signatures and docs for add/sub/scale/dot/norm_l2/matmul
• rvv_ext/py.typed: marker file telling tools and IDEs that the package ships type information

Both are included in the wheel (see rvv_ext/setup.py).

Option A: install the wheel to get completion (recommended)

pip install --no-deps --force-reinstall dist/*.whl

Option B: get completion while developing directly in the source tree

• Make sure your IDE's interpreter/project index can see rvv_ext/rvv.pyi
• In PyCharm, mark rvv_ext/ as Sources Root (or add it to PYTHONPATH)

Either way, the runtime import is still import rvv.

Testing

Tests live in rvv_ext/tests and require NumPy plus pytest:

pytest -q

A performance comparison script that does not depend on pytest:

python3 tests/test_rvv.py

On SG2002 you can also run the micro-benchmark:

python3 tests/bench_perf.py

Troubleshooting

Error: could not load cache

Raised by cmake --build build ... when the CMake cache (build/CMakeCache.txt) is missing. Common causes:

• You ran python3 project.py distclean and did not re-run the CMake configure step afterwards
• The build/ directory was deleted or is empty

Fix:

cd /path/to/rvv_ext

# Re-run configure (generates build/CMakeCache.txt)
python3 project.py build

# Then compile
cmake --build build --target main -- -j"$(nproc)"

setup.py reports Native library not found: build/main/libmain.so

This means the extension has not been built yet, or it was built into a different directory. Check with:

find build -maxdepth 4 -name 'libmain.so' -o -name '*.so' | sort

If libmain.so exists but is not under build/main/, adjust SO_FILE_PATH in setup.py accordingly.

Copy-paste commands (embedded Linux)

cd /path/to/rvv_ext            # adjust to your real path

# (Optional) full clean: removes build/ and CMakeCache.txt
python3 project.py distclean

# 1) Configure CMake (re-creates build/ and build/CMakeCache.txt)
python3 project.py build

# Sanity check (should exist after configure)
ls -la build/CMakeCache.txt

# 2) Compile the extension shared library (creates build/main/libmain.so)
cmake --build build --target main -- -j"$(nproc)"

# Sanity check (should exist after compile)
ls -la build/main/libmain.so

# 3) Build the wheel (creates dist/*.whl)
python3 setup.py bdist_wheel

# 4) List the wheel
ls -la dist

If you only want to remove compiled objects but keep the CMake cache, prefer python3 project.py clean over distclean.

License

This project is licensed under LGPL-3.0. See the LICENSE file in the repository for details.

Copyright (C) 2026 ywj <yangwenjie1231@qq.com>
