SPMOD - SERVO

    Overview

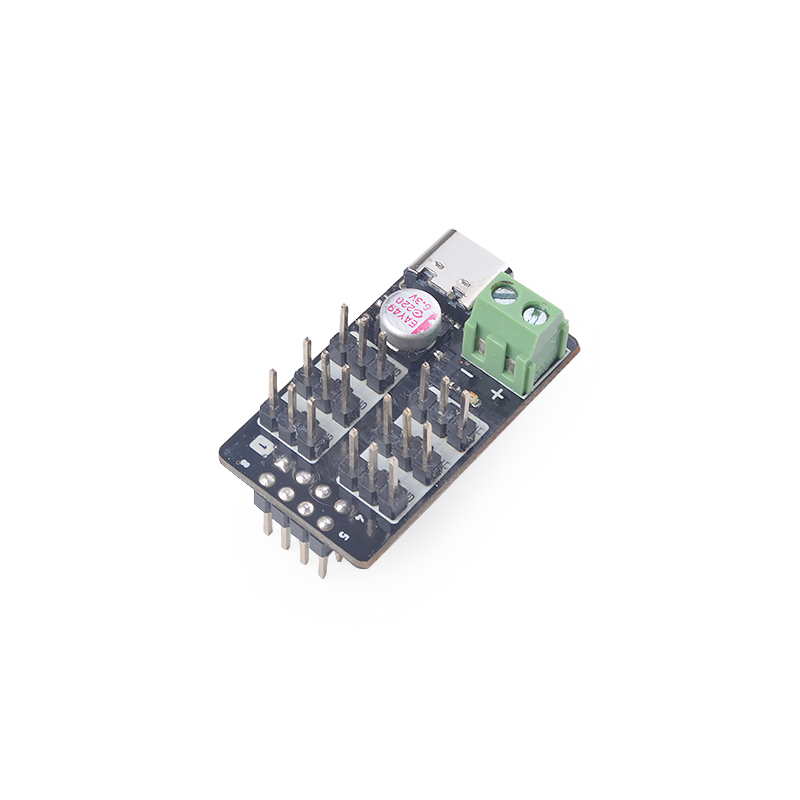

    SPMOD_SERVO (SERVO module).

    SPMOD - SERVO Introduction

    • Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
    • Using SP-MOD to control up to 6 independent 9g servos
    • Servo interface uses 3P 2.54 pitch pin header
    • Independent external 5V power supply, will not take power from SP-MOD
    • Built-in LED,making module status easier to see.
    • Size:35.0*20*1.6mm
    Features: ---
    PWM 9g servo interface *6 In the case of an external 4.8-6V power supply, 6 servos can be connected and controlled separately
    Supply voltage of external power supply 4.8V-6.0V
    Supply current of external power supply Depends on the working conditions of the module, usually less than 1500mA
    Range of working temperature -40℃ ~ 85℃

    SPMOD_SERVO pin description:

    Usage

    • 待更新

    Outlook

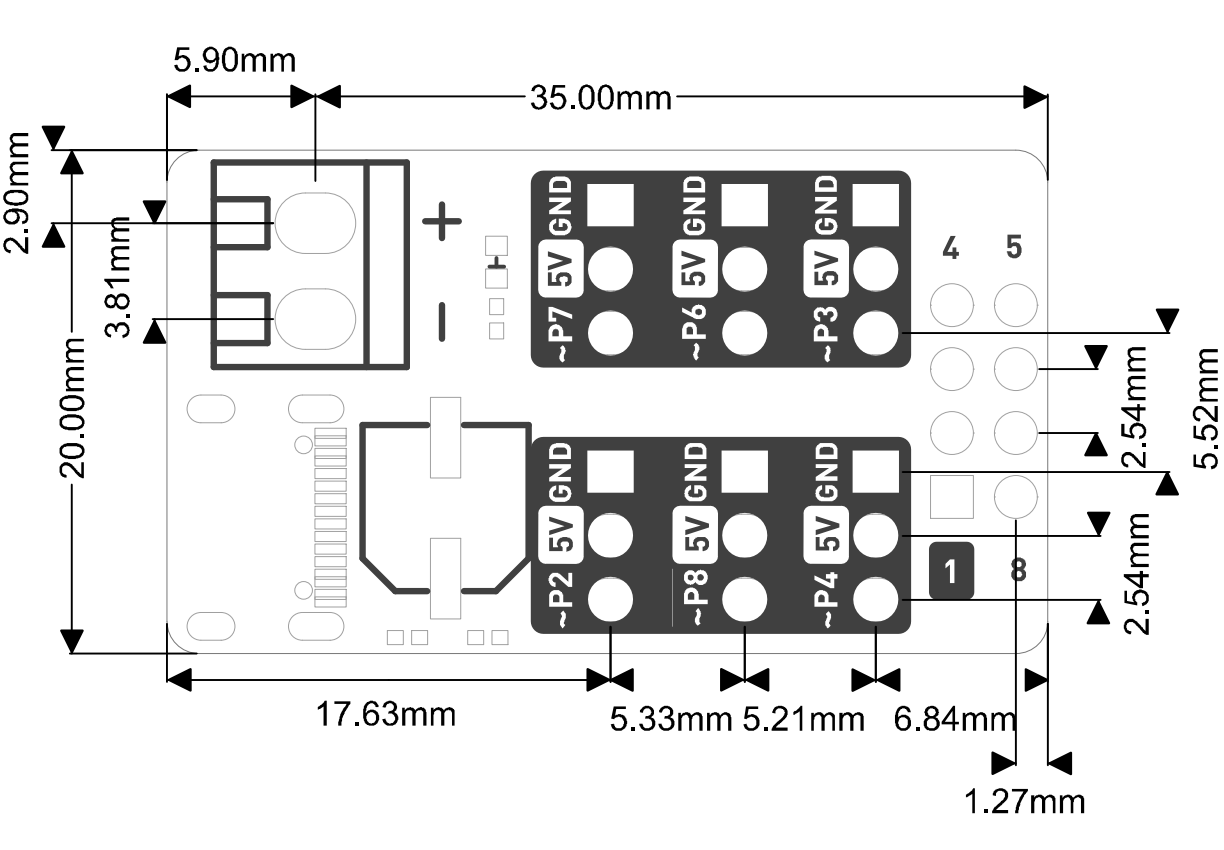

    • SPMOD_SERVO Size drawing:
