SPMOD - JoyStick

    Overview

    SPMOD_JoyStick (JoyStick module).

    SPMOD - JoyStick Introduction

    • Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
    • Connect to the board through the SP-MOD SPI interface
    • 7.2V~9V DC can be connected via external adapter,power the vibration motor of the handle
    • Built-in step-up circuit,easy to drive the handle
    • Compatible with PSX/PS2
    • Size:35.0*20.0*13.3mm

    SPMOD_JoyStick pin description:

    Pin Name Type Description
    1 GND G Ground
    2 CS I Chip Select input pin
    3 SO I/O Master In Slave Out
    4 NC NC Not connected
    5 3V3 V Power supply(3.3V)
    6 SCK I SPI clock pin
    7 SI I/O Master Out Slave In
    8 ACK O data ready output pin

    Introduction

    • 待更新

    Outlook

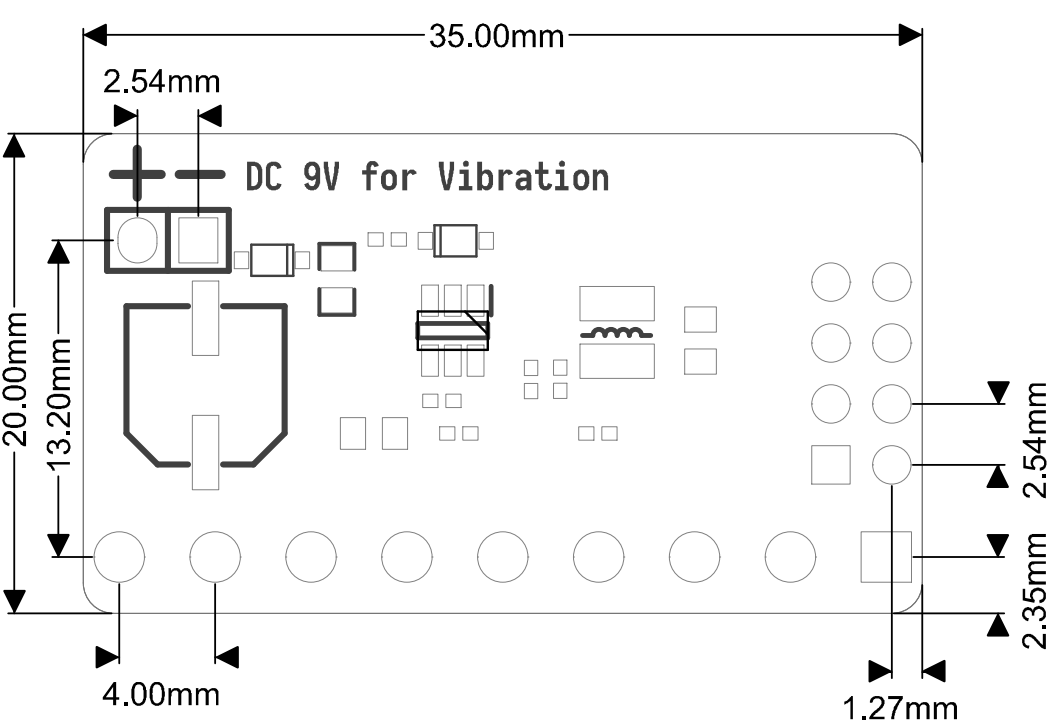

    • SPMOD_JoyStick Size drawing:
