SPMOD - Grove

    Overview

    SPMOD_Grove(GROVE module)

    SPMOD - Grove Introduction

    • Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
    • Ass an Expansion board,it povides three standard Grove interfaces.
    • All data cables are provide external pull-ups.
    • The power supply can handle up to 1000mA
    • Size:35.0*10.0*2.1mm

    Introduction

    Features: ---
    Grove connector (HY 2.0mm 4P connector)*3 Used to connect Grove
    4*2 pin,2.54mm pitch: *1 Used to connect with SP-MOD interface
    Supply voltage of external power supply Depends on connected modules
    Supply current of external power supply Depends on the working conditions of the module, usually less than 1000mA
    Range of working temperature -30℃ ~ 85℃

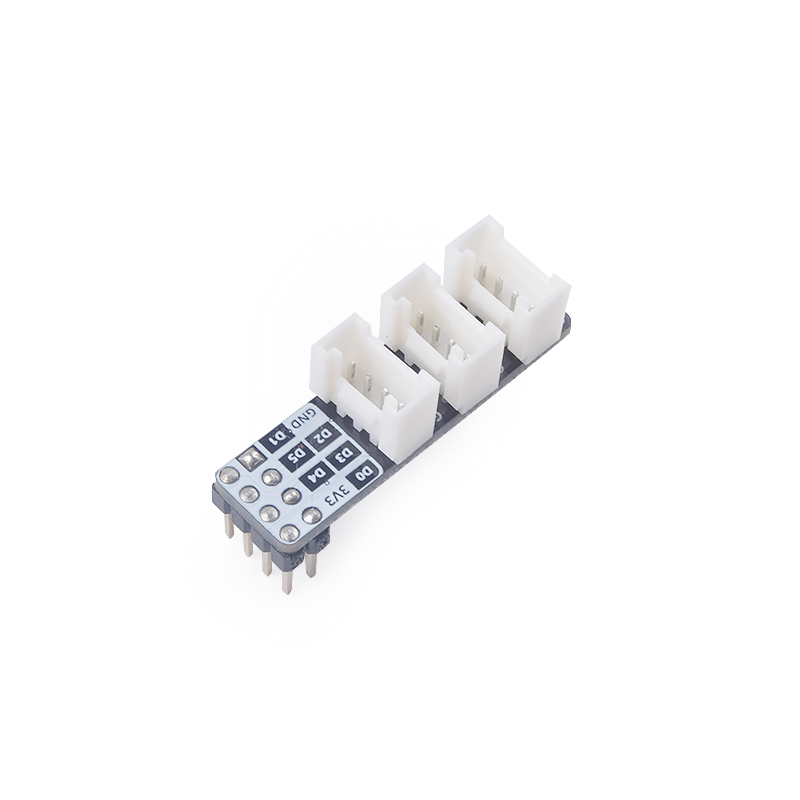

    Outlook

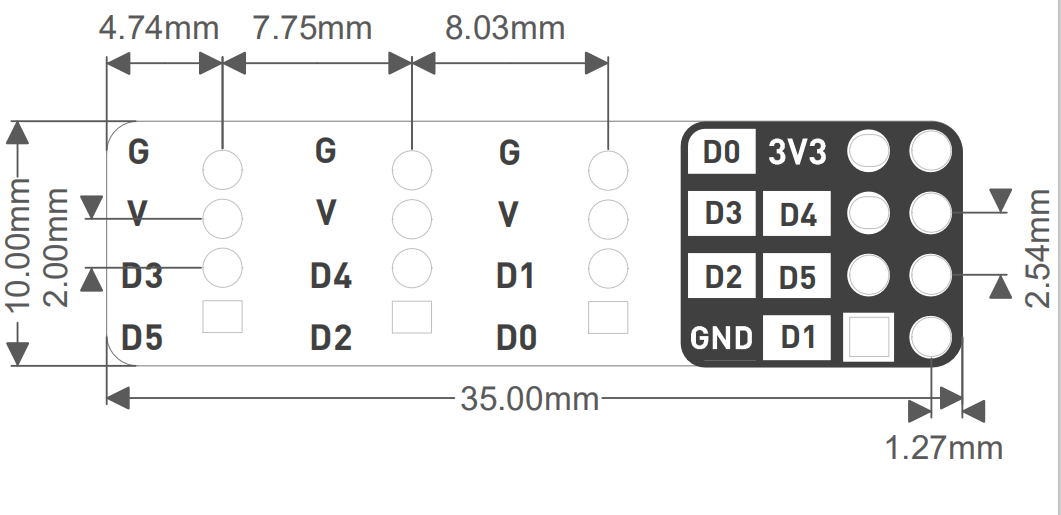

    • SPMOD_Grove Size drawing:
