SPMOD - Extender

    Overview

    SPMOD_Extender(8PIN SP-MOD Expander)

    SPMOD - Extender Introduction

    • Using Sipeed-SPMOD interface(2.54mm * 8PIN ),unified MaixPy board interface
    • Using SP-Extender to divide SP-MOD into four interface,including three Two-wire SP-MOD interface and a Four-wire SP-MOD interface
    • Size:35.0*20.0*1.6mm

    Introduction

    Features: ---
    Two-wire SP-MOD interface*3 Connect to the D0 and D1 on the SP-MOD,Used as UART interface (Connect at most one device)
    or I2C interface(Connect at most three device) , can also be used as two independent GPIO
    Four-wire SP-MOD interface Connect to the D2-D5 on the SP-MOD,Uusually used as SPI interface,
    can also be used as four independent GPIO
    Supply voltage of external power supply Depends on connected modules
    Supply current of external power supply Depends on the working conditions of the module, usually less than 1000mA
    Range of working temperature -40℃ ~ 85℃

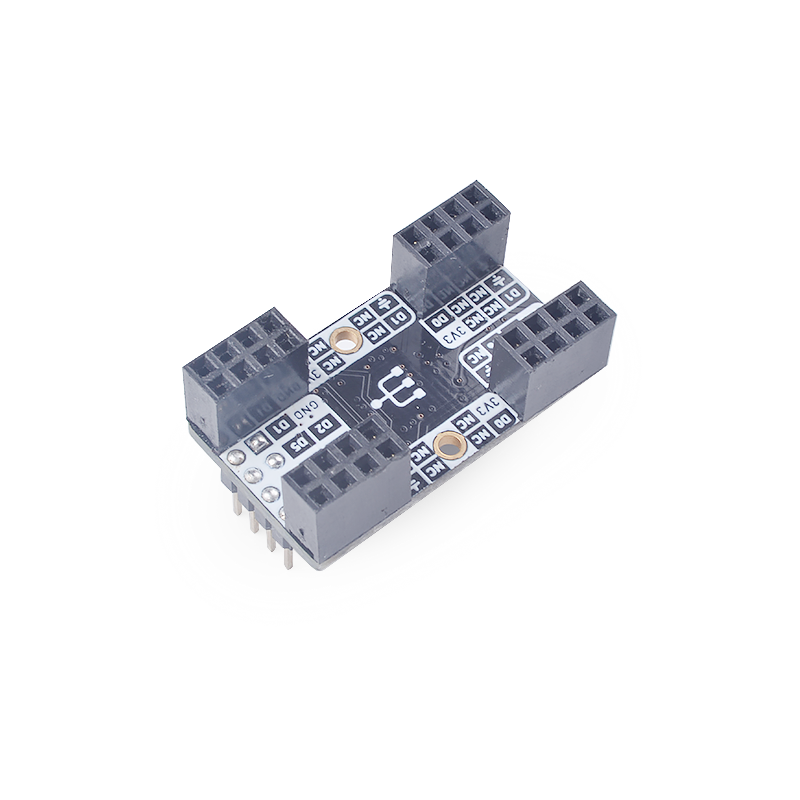

    Outlook

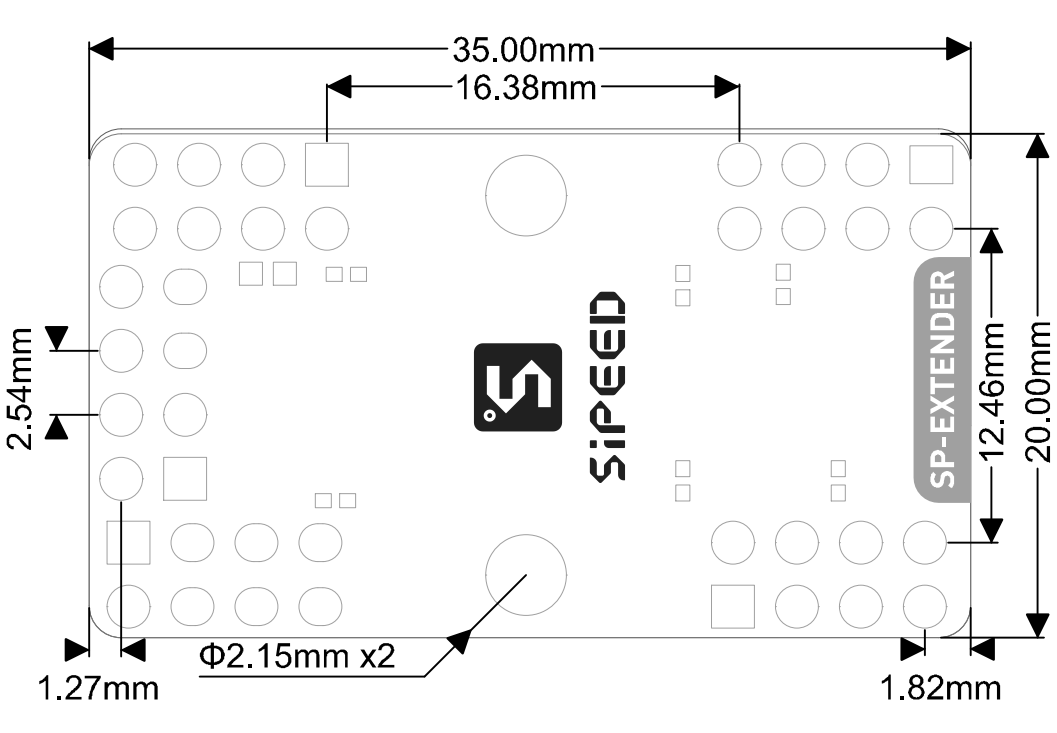

    • SPMOD_Extender Size drawing:
